Product information
Overview

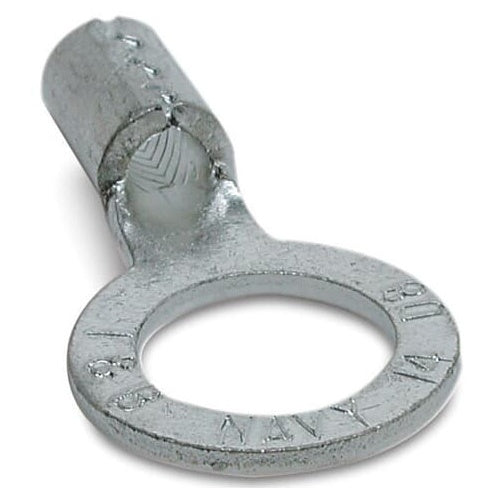

T&B D8-38 Non-Insulated Brazed Seam Ring Terminal No8 Awg 3/8" Bolt
Product Specifications
- UPC: 78621080449
- Temperature Rating: 150 Deg C
- Standard Package: 125 per Outer Pack
- Approval: UL 486A/B, CSA C22.2
- Additional Information: Voltage Rating 600 Volt; Overall Dimension 1.32 Inch Length x 0.59 Inch Width x 0.06 Inch Thickness; Material Copper; Finish Electro Tin Plated
- Catalog Number: D8-38
- Brand Name: Sta-Kon
- Type: Standard
- Minimum Conductor Size: 9 AWG
- Maximum Conductor Size: 7 AWG
- Color: Metallic
- Insulation Type: Non-Insulated
- Stud Size: 3/8 Inch
- Catalog Description: NON-INSULATED LARGE BRAZED SEAM RING TERMINAL, LENGTH 1.32 INCHES, WIDTH .59 INCHES, BOLT HOLE 3/8 INCH, WIRE RANGE #8 AWG, COPPER, TIN PLATED
- Category: Large Terminals & Connectors
- Full Technical Description: Standard Type; Metallic Color; 9 AWG min. Conductor Size; 7 AWG Max. Conductor Size; UL 486A/B, CSA C22.2 Approval; 150 Deg C Temperature Rating; 125 Per Outer Pack Standard Package; 3/8 Inch Stud Size; Non-Insulated Insulation Type; Voltage Rating 600 Volt; Overall Dimension 1.32 Inch Length X 0.59 Inch Width X 0.06 Inch Thickness; Material Copper; Finish Electro Tin Plated
- Made In Usa: Yes
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Ring Lug
- Unspsc: 39121432
- UPC 12 Digit: 786210804491
- SKU Name: t&b d838
