Product information
Overview

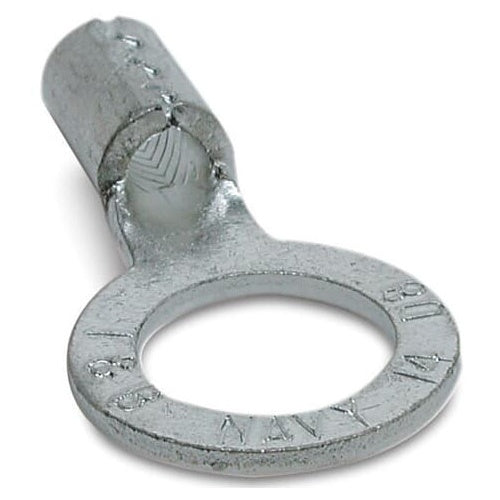

T&B D8-516 Non-Insulated - Brazed Seam Ring Terminal 8, 5/16, Me
Product Specifications
- UPC: 78621080356
- Standard Package: 125 per Outer Pack
- Approval: UL 486A/B, CSA C22.2
- Additional Information: Voltage Rating 600 Volt; Overall Dimension 1.32 Inch Length x 0.59 Inch Width; Material Copper; Finish Electro Tin Plated
- Catalog Number: D8-516
- Brand Name: T&B
- Type: Standard
- Minimum Conductor Size: 9 AWG
- Maximum Conductor Size: 7 AWG
- Insulation Type: Non-Insulated
- Stud Size: 5/16 Inch
- Temperature Rating: 150 Deg C
- Catalog Description: NON-INSULATED LARGE BRAZED SEAM RING TERMINAL, LENGTH 1.32 INCHES, WIDTH .59 INCHES, BOLT HOLE 5/16 INCH, WIRE RANGE #8 AWG, COPPER, TIN PLATED
- Category: Large Terminals & Connectors
- Full Technical Description: Standard Type; 9 AWG min. Conductor Size; 7 AWG Max. Conductor Size; UL 486A/B, CSA C22.2 Approval; 150 Deg C Temperature Rating; 125 Per Outer Pack Standard Package; 5/16 Inch Stud Size; Non-Insulated Insulation Type; Voltage Rating 600 Volt; Overall Dimension 1.32 Inch Length X 0.59 Inch Width; Material Copper; Finish Electro Tin Plated
- Made In Usa: Yes
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Ring Lug
- Unspsc: 39121432
- UPC 12 Digit: 786210803562
- SKU Name: t&b d8516
