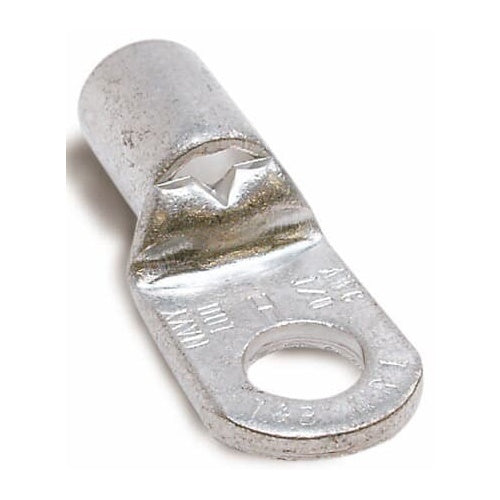

T&B D975 Non-Insulated - Tub Ring Terminal 8, 1/2, Me

Overview

T&B D975 Non-Insulated - Tub Ring Terminal 8, 1/2, Me

Product Specifications

• UPC: 78621080028
• Catalog Number: D975
• Type: Large, Tubular
• Maximum Conductor Size: 8 AWG (Aircraft)
• Insulation Type: Non-Insulated
• Stud Size: 1/2 Inch
• Standard Package: 2000 per Outer Pack
• Approval: UL, CSA
• Additional Information: Voltage Rating 600 Volt; Overall Dimension 1.46 Inch Length x 0.83 Inch Width; Material Copper; Finish Electro Tin Plated
• Catalog Description: NON-INSULATED TUBULAR RING TERMINAL, LENGTH 1.46 INCHES, WIDTH .83 INCHES, BOLT HOLE 1/2 INCH, WIRE RANGE 8/8AN, COPPER, TIN PLATED
• Category: Large Terminals & Connectors
• Full Technical Description: Large, Tubular Type; 8 AWG (Aircraft) Max. Conductor Size; UL, CSA Approval; 2000 Per Outer Pack Standard Package; 1/2 Inch Stud Size; Non-Insulated Insulation Type; Voltage Rating 600 Volt; Overall Dimension 1.46 Inch Length X 0.83 Inch Width; Material Copper; Finish Electro Tin Plated
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210800288
• SKU Name: t&b d975
