Product information
Overview

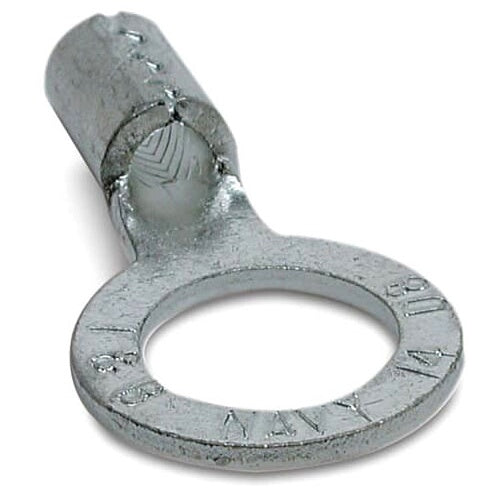

T&B E26 Non-Insulated Brazed Seam Ring Terminal No6 Awg No10 Bolt
Product Specifications
- UPC: 78621081186
- Temperature Rating: 150 Deg C
- Standard Package: 2000 per Outer Pack
- Approval: UL 486A/B, CSA C22.2
- Additional Information: Voltage Rating 600 Volt; Overall Dimension 1.13 Inch Length x 0.48 Inch Width x 0.06 Inch Thickness; Material Copper; Finish Electro Tin Plated
- Catalog Number: E26
- Brand Name: Sta-Kon
- Type: Standard
- Minimum Conductor Size: 6 AWG
- Maximum Conductor Size: 5 AWG
- Color: Metallic
- Insulation Type: Non-Insulated
- Stud Size: #10
- Catalog Description: NON-INSULATED LARGE BRAZED SEAM RING TERMINAL, LENGTH 1.13 INCHES, WIDTH .48 INCHES, BOLT HOLE #10, WIRE RANGE #6 AWG, COPPER, TIN PLATED, 200 PACK
- Category: Large Terminals & Connectors
- Full Technical Description: Standard Type; Metallic Color; 6 AWG min. Conductor Size; 5 AWG Max. Conductor Size; UL 486A/B, CSA C22.2 Approval; 150 Deg C Temperature Rating; 2000 Per Outer Pack Standard Package; #10 Stud Size; Non-Insulated Insulation Type; Voltage Rating 600 Volt; Overall Dimension 1.13 Inch Length X 0.48 Inch Width X 0.06 Inch Thickness; Material Copper; Finish Electro Tin Plated
- Made In Usa: Yes
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Ring Lug
- Unspsc: 39121432
- UPC 12 Digit: 786210811864
- SKU Name: t&b e26
