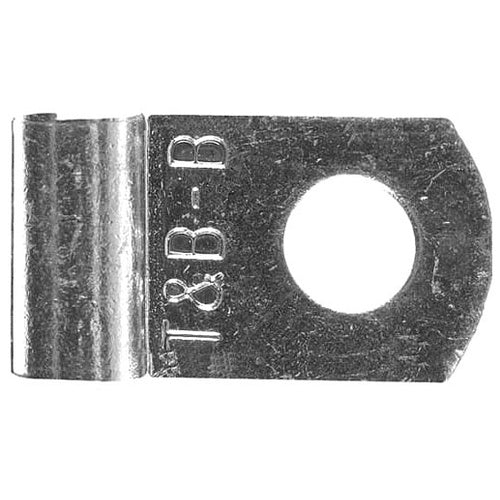

T&B E271 Non-Insulated Flag Terminal, 6, 5, 1/4, Metal

Overview

T&B E271 Non-Insulated Flag Terminal, 6, 5, 1/4, Metal

Product Specifications

• UPC: 78621081200
• Temperature Rating: 150 Deg C
• Standard Package: 1000
• Approval: UL 486-A, CSA 22.2
• Additional Information: Dimension 0.97 Inch L x 1/2 Inch W x 0.06 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V
• Catalog Number: E271
• Model: E
• Type: Flag, Standard
• Minimum Conductor Size: 6 AWG
• Maximum Conductor Size: 5 AWG
• Color: Metallic
• Insulation Type: Non-Insulated
• Stud Size: 1/4 Inch
• Catalog Description: NON-INSULATED FLAG TERMINAL, LENGTH .99 INCHES, WIDTH .50 INCHES, BOLT HOLE 1/4 INCH, WIRE RANGE #6 AWG, COPPER, TIN PLATED
• Category: Large Terminals & Connectors
• Full Technical Description: Flag, Standard Type; Metallic Color; 6 AWG min. Conductor Size; 5 AWG Max. Conductor Size; UL 486-A, CSA 22.2 Approval; 150 Deg C Temperature Rating; 1000 Standard Package; 1/4 Inch Stud Size; Non-Insulated Insulation Type; Dimension 0.97 Inch L X 1/2 Inch W X 0.06 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V; E Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210812007
• SKU Name: t&b e271
