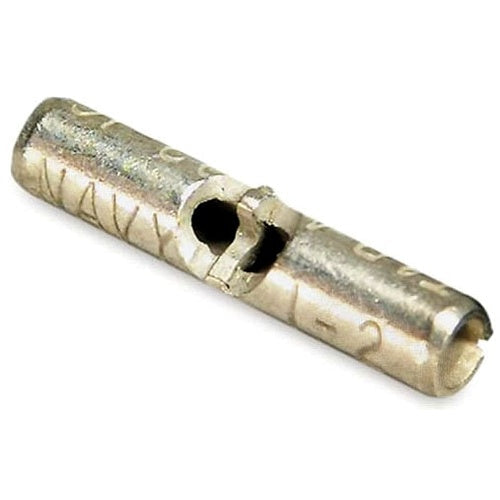

T&B EE2 Non-Insulated Butt Splce No6 Awg Len 1.12

Overview

T&B EE2 Non-Insulated Butt Splce No6 Awg Len 1.12

Product Specifications

• UPC: 78621081214
• Color: Metallic
• Material: Electro Tin Plated Copper
• Temperature Rating: 150 Deg C
• Standard Package: 200
• Approval: UL 94, CSA
• Catalog Number: EE2
• Model: E
• Type: Butt
• Voltage Rating: 600 V
• Length: 1.12 Inch
• Barrel Outer Diameter: 0.37 Inch
• Conductor Size: 6 to 5 AWG
• Insulation Type: Non-Insulated
• Catalog Description: NON-INSULATED BUTT SPLICE, LENGTH 1.12 INCHES, WIDTH 0.307 INCH, WIRE RANGE 6 AWG, COPPER, TIN PLATED, 200 PACK
• Category: Splicing & Terminating Kits
• Full Technical Description: Butt Type; Electro Tin Plated Copper Material; Metallic Color; 1.12 Inch; UL 94, CSA Approval; 600 V Voltage Rating; 150 Deg C Temperature Rating; 200 Standard Package; 6 to 5 AWG Conductor Size; Non-Insulated Insulation Type; 0.37 Inch Barrel Outer Diameter; E Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Splice Connector
• Unspsc: 39121449
• UPC 12 Digit: 786210812144
• SKU Name: t&b ee2
