Product information
Overview

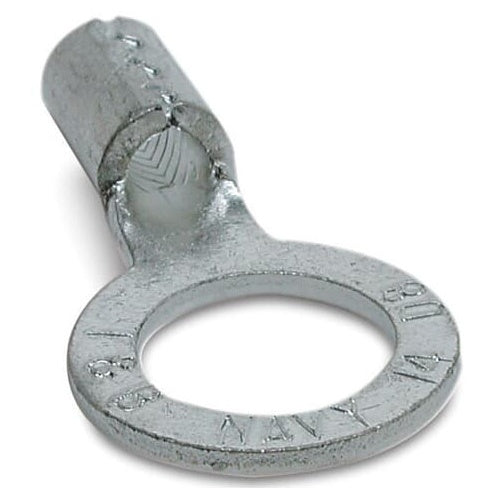

T&B F4-14 Non-Insulated - Brazed Seam Ring Terminal 4, 1/4, Met
Product Specifications
- UPC: 78621080362
- Temperature Rating: 150 Deg C
- Standard Package: 100 per Outer Pack
- Approval: UL 486A/B, CSA C22.2
- Additional Information: Voltage Rating 600 Volt; Overall Dimension 1.16 Inch Length x 0.48 Inch Width x 0.07 Inch Thickness; Material Copper; Finish Electro Tin Plated
- Catalog Number: F4-14
- Brand Name: Sta-Kon
- Type: Standard
- Minimum Conductor Size: 4 AWG
- Maximum Conductor Size: 3 AWG
- Color: Metallic
- Insulation Type: Non-Insulated
- Stud Size: 1/4 Inch
- Catalog Description: NON-INSULATED LARGE BRAZED SEAM RING TERMINAL, LENGTH 1.16 INCHES, WIDTH .48 INCHES, BOLT HOLE 1/4 INCH, WIRE RANGE #4 AWG, COPPER, TIN PLATED, 20 PACK
- Category: Large Terminals & Connectors
- Full Technical Description: Standard Type; Metallic Color; 4 AWG min. Conductor Size; 3 AWG Max. Conductor Size; UL 486A/B, CSA C22.2 Approval; 150 Deg C Temperature Rating; 100 Per Outer Pack Standard Package; 1/4 Inch Stud Size; Non-Insulated Insulation Type; Voltage Rating 600 Volt; Overall Dimension 1.16 Inch Length X 0.48 Inch Width X 0.07 Inch Thickness; Material Copper; Finish Electro Tin Plated
- Made In Usa: Yes
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Ring Lug
- Unspsc: 39121432
- UPC 12 Digit: 786210803623
- SKU Name: t&b f414
