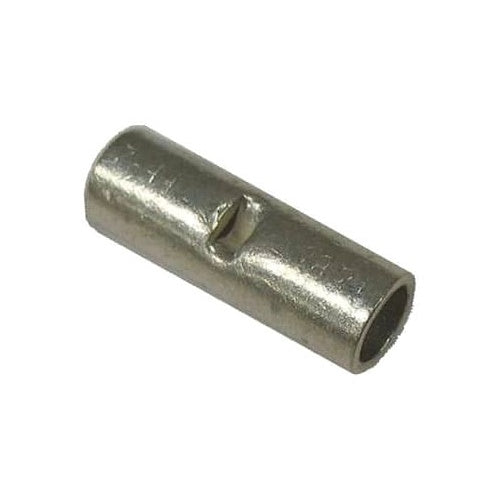

T&B FF2 Non-Insulated Butt Splce 4-3 Awg Len 1.12

Overview

T&B FF2 Non-Insulated Butt Splce 4-3 Awg Len 1.12

Product Specifications

• UPC: 78621081237
• Standard Package: 200
• Approval: UL, CSA
• Length In Inch Uom: in
• Catalog Number: FF2
• Brand Name: Sta-Kon.
• Type: BUTT
• Length: 1.25 INCH
• Length In Inch: 1.25
• Barrel Outer Diameter: 0.44 INCH
• Conductor Size: 4 TO 3 AWG
• Insulation Type: NON INSULATED
• Catalog Description: NON-INSULATED BUTT SPLICE, LENGTH 1.12 INCHES, WIDTH 0.377 INCH, WIRE RANGE 4-3 AWG, COPPER, TIN PLATED, 200 PACK
• Category: Large Terminals & Connectors
• Full Technical Description: Butt Type; 1.25 Inch; 1.25 Length in Inch; UL, CSA Approval; 200 Standard Package; 4 to 3 AWG Conductor Size; Non Insulated Insulation Type; 0.44 Inch Barrel Outer Diameter; Sta-Kon. Brand; Length in Inch - Uom in
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Splice Connector
• Unspsc: 39121449
• UPC 12 Digit: 786210812373
• SKU Name: t&b ff2
