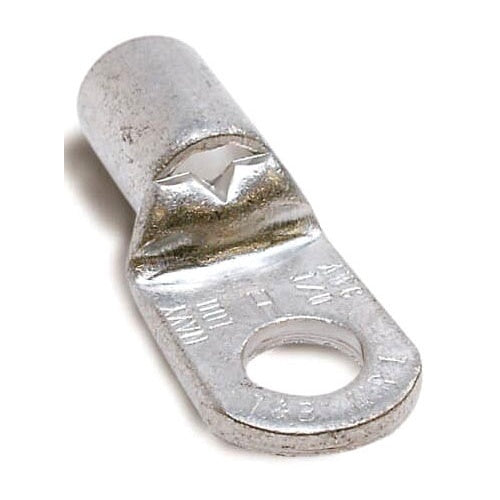

T&B G2-12 Non-Insulated - Tub Ring Terminal 2, 1/2, Me

Overview

T&B G2-12 Non-Insulated - Tub Ring Terminal 2, 1/2, Me

Product Specifications

• UPC: 78621087195
• Additional Information: Size 1.79 Inch Length x 0.8 Inch Width; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper
• Catalog Number: G2-12
• Type: Large, Tubular
• Maximum Conductor Size: 2/2 AWG (Aircraft Wire)
• Insulation Type: Non-Insulated
• Stud Size: 1/2 Inch
• Temperature Rating: 150 Deg C
• Standard Package: 10 per Pack
• Approval: UL 486A/B, CSA 22.2
• Catalog Description: NON-INSULATED TUBULAR RING TERMINAL, LENGTH 1.79 INCHES, WIDTH .80 INCHES, BOLT HOLE 1/2 INCH, WIRE RANGE 2/2AN, COPPER, TIN PLATED
• Category: Large Terminals & Connectors
• Full Technical Description: Large, Tubular Type; 2/2 AWG (Aircraft Wire) Max. Conductor Size; UL 486A/B, CSA 22.2 Approval; 150 Deg C Temperature Rating; 10 Per Pack Standard Package; 1/2 Inch Stud Size; Non-Insulated Insulation Type; Size 1.79 Inch Length X 0.8 Inch Width; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210871950
• SKU Name: t&b g212

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
