Product information
Overview

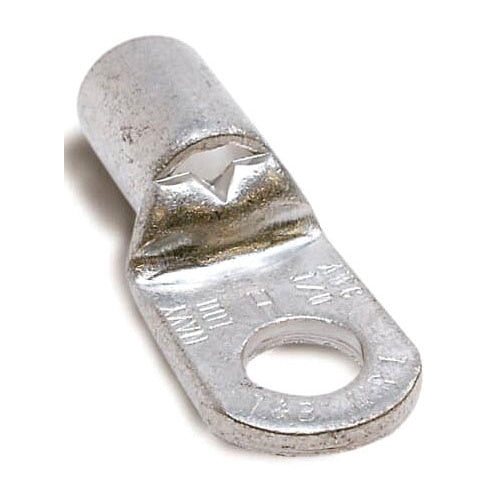

T&B G2-14 Non-Insulated - Tub Ring Terminal 2, 1/4, Me
Product Specifications
- UPC: 78621080366
- Temperature Rating: 150 Deg C
- Standard Package: 100 per Outer Pack
- Approval: UL 486A/B, CSA C22.2
- Additional Information: Voltage Rating 600 Volt; Overall Dimension 1.59 Inch Length x 0.69 Inch Width x 0.05 Inch Thickness; Material Copper; Finish Electro Tin Plated
- Catalog Number: G2-14
- Brand Name: Sta-Kon
- Type: Standard
- Minimum Conductor Size: 2 AWG
- Maximum Conductor Size: 1 AWG
- Color: Metallic
- Insulation Type: Non-Insulated
- Stud Size: 1/4 Inch
- Catalog Description: NON-INSULATED TUBULAR RING TERMINAL, LENGTH 1.59 INCHES, WIDTH .69 INCHES, BOLT HOLE 1/4 INCH, WIRE RANGE 2/2AN, COPPER, TIN PLATED
- Category: Large Terminals & Connectors
- Full Technical Description: Standard Type; Metallic Color; 2 AWG min. Conductor Size; 1 AWG Max. Conductor Size; UL 486A/B, CSA C22.2 Approval; 150 Deg C Temperature Rating; 100 Per Outer Pack Standard Package; 1/4 Inch Stud Size; Non-Insulated Insulation Type; Voltage Rating 600 Volt; Overall Dimension 1.59 Inch Length X 0.69 Inch Width X 0.05 Inch Thickness; Material Copper; Finish Electro Tin Plated
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Ring Lug
- Unspsc: 39121432
- UPC 12 Digit: 786210803661
- SKU Name: t&b g214
