Product information
Overview

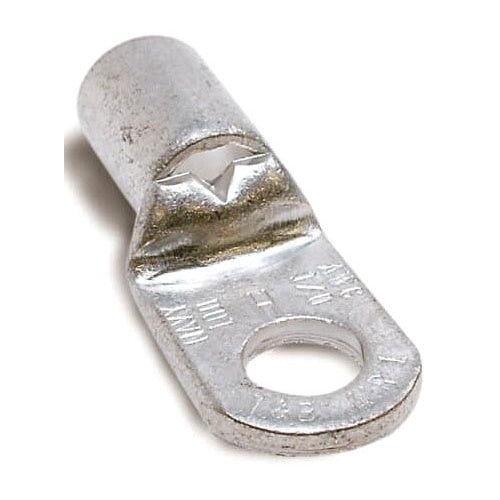

T&B G2-516 Non-Insulated - Tub Ring Terminal 2, 5/16, M
Product Specifications
- UPC: 78621080368
- Additional Information: Size 1.59 Inch Length x 0.69 Inch Width; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper
- Catalog Number: G2-516
- Type: Large, Tubular
- Maximum Conductor Size: 2/2 AWG (Aircraft Wire)
- Insulation Type: Non-Insulated
- Stud Size: 5/16 Inch
- Temperature Rating: 150 Deg C
- Standard Package: 10 per Pack
- Approval: UL 486A/B, CSA 22.2
- Catalog Description: NON-INSULATED TUBULAR RING TERMINAL, LENGTH 1.59 INCHES, WIDTH .69 INCHES, BOLT HOLE 5/16 INCH, WIRE RANGE 2/2AN, COPPER, TIN PLATED
- Category: Large Terminals & Connectors
- Full Technical Description: Large, Tubular Type; 2/2 AWG (Aircraft Wire) Max. Conductor Size; UL 486A/B, CSA 22.2 Approval; 150 Deg C Temperature Rating; 10 Per Pack Standard Package; 5/16 Inch Stud Size; Non-Insulated Insulation Type; Size 1.59 Inch Length X 0.69 Inch Width; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Ring Lug
- Unspsc: 39121432
- UPC 12 Digit: 786210803685
- SKU Name: t&b g2516
