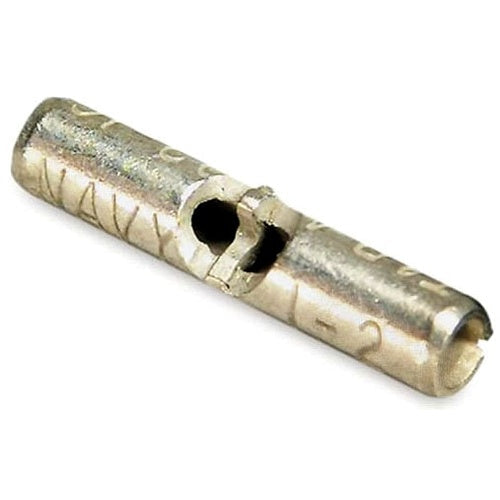

T&B GG2 Non-Insulated Butt Splce 2-1 Awg Len 1.72

Overview

T&B GG2 Non-Insulated Butt Splce 2-1 Awg Len 1.72

Product Specifications

• UPC: 78621081259
• Color: Metallic
• Material: Electro Tin Plated Copper
• Temperature Rating: 150 Deg C
• Standard Package: 25
• Approval: UL 94, CSA
• Catalog Number: GG2
• Model: GG
• Type: Butt
• Voltage Rating: 600 V
• Length: 1.72 Inch
• Barrel Outer Diameter: 0.55 Inch
• Conductor Size: 2 to 1 AWG
• Insulation Type: Non-Insulated
• Catalog Description: NON-INSULATED BUTT SPLICE, LENGTH 1.72 INCHES, WIDTH 0.47 INCH, WIRE RANGE 2-1 AWG, COPPER, TIN PLATED, 25 PACK
• Category: Splicing & Terminating Kits
• Full Technical Description: Butt Type; Electro Tin Plated Copper Material; Metallic Color; 1.72 Inch; UL 94, CSA Approval; 600 V Voltage Rating; 150 Deg C Temperature Rating; 25 Standard Package; 2 to 1 AWG Conductor Size; Non-Insulated Insulation Type; 0.55 Inch Barrel Outer Diameter; GG Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Splice Connector
• Unspsc: 39121449
• UPC 12 Digit: 786210812595
• SKU Name: t&b gg2
