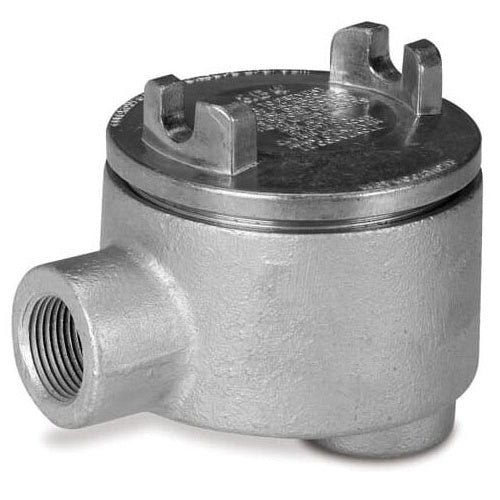

T&B GUAB59-TB 1-1/2" Guab-Body/Cover, O.D.-5-3/4

Overview

High durability for long-lasting performance, Easy installation and compatibility with standard systems, Excellent resistance to environmental factors

Product Specifications

• UPC: 78621034445
• Shape: Round
• Cover Type: Externally Threaded
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 Group E F G, Class III Div 1 and 2, NEMA 3/4/7C/7D/9E/9F/9G
• Material: Aluminum Acrylic Painted Zinc Plated Ductile Iron (Body), Natural Finished Die-Cast Aluminum (Cover)
• Approval: UL 514A/886, CSA C22.2
• Additional Information: Includes Internal Grounding Screw, O-Ring Gasket
• Catalog Number: GUAB59-TB
• Model: GUAB
• Style: LB
• Hub Size: 1-1/2 Inch
• Hub Type: External
• Number Of Hubs: 2
• Hub Location: (1) Side, (1) Down
• Capacity: 73.6 Cu Inch
• Catalog Description: 1-1/2 INCH GUAB HAZARDOUS LOCATION CONDUIT OUTLET BOX WITH COVER, BOX DUCTILE IRON ZINC PLATED, COVER DIE CAST ALUMINUM, 73.6 CUBIC INCH
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Aluminum Acrylic Painted Zinc Plated Ductile Iron (Body), Natural Finished Die-Cast Aluminum (Cover) Material; Round Shape; 1-1/2 Inch Hub Size; 2 Hub(S); UL 514A/886, CSA C22.2 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 Group E F G, Class III Div 1 and 2, NEMA 3/4/7C/7D/9E/9F/9G Enclosure; Externally Threaded Cover Type; 73.6 Cu Inch Capacity; lb Style; (1) Side, (1) Down Hub Location; External Hub Type; Includes Internal Grounding Screw, O-ring Gasket; GUAB Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39131708
• UPC 12 Digit: 786210344454
• SKU Name: T&B GUAB59TB
