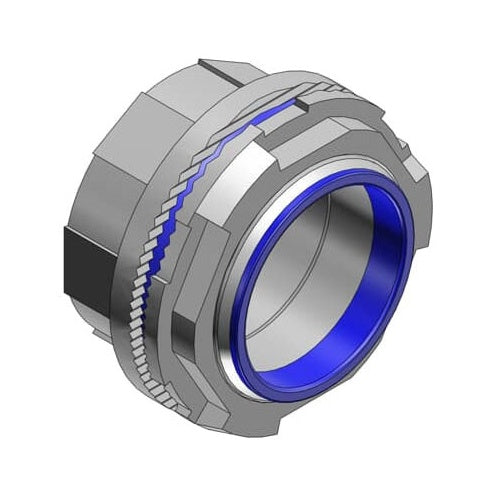

T&B H100CP 1" Zinc Hub Connector

Overview

T&B H100CP 1" Zinc Hub Connector

Product Specifications

• UPC: 78621000189
• Approval: UL, CSA
• Used On: Rigid/IMC
• Additional Information: Maximum Panel Thickness 1/4 Inch; Temperature Rating 105 Deg C
• Catalog Number: H100CP
• Brand Name: T&B
• Type: Tapered Female Threaded, Bulkhead
• Throat Type: Thermoplastic Insulated
• Trade Size: 1 Inch
• Size: 2 Inch Diameter x 1-13/16 Inch Length
• Constructional Feature: NEMA 4X/12, Water Tight, Dust Tight
• Material: Chrome Plated Zinc (Hub/Locknut), Nitrile (Sealing Ring)
• Catalog Description: 1 INCH ZINC HUB CONNECTOR WITH CHROME PLATING, THERMOPLASTIC INSULATING THROAT, SEALING RING NITRILE (BUNA-N) FOR USE WITH RIGID/IMC CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Tapered Female Threaded, Bulkhead Type; Chrome Plated Zinc (Hub/Locknut), Nitrile (Sealing Ring) Material; 2 Inch Diameter X 1-13/16 Inch Length Size; Rigid/Imc Used on; UL, CSA Approval; 1 Inch Trade Size; NEMA 4X/12, Water Tight, Dust Tight; Thermoplastic Insulated Throat Type; BULLET[R] Brand; Maximum Panel Thickness 1/4 Inch; Temperature Rating 105 Deg C
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Rigid/EMT Conduit Hub
• Unspsc: 39121311
• UPC 12 Digit: 786210001890
• SKU Name: t&b h100cp
