Overview

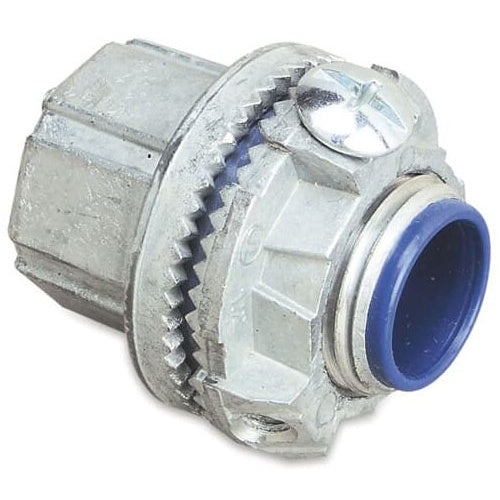

T&B H100GRSST 1" Tb Hub Stainless Steel

Product Specifications

• UPC: 78621000280
• Material: 316 Stainless Steel (Hub), Zinc/Copper-Free Aluminum (Locknut), Nitrile (Sealing Ring)
• Approval: UL 94, CSA
• Used On: Rigid/IMC
• Additional Information: Maximum Panel Thickness 0.25 Inch; Temperature Rating 105 Deg C
• Catalog Number: H100GRSST
• Brand Name: Ocal
• Type: Threaded
• Throat Type: Thermoplastic Insulated
• Trade Size: 1 Inch
• Size: 2 Inch Diameter x 1.81 Inch Length
• Constructional Feature: Corrosion Resistant
• Ground Type: Locknut Grounding Screw
• Catalog Description: 1 INCH 316 STAINLESS STEEL GROUNDING HUB, THERMOPLASTIC INSULATING THROAT, SEALING RING NITRILE (BUNA-N) FOR USE WITH RIGID/IMC CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Threaded Type; 316 Stainless Steel (Hub), Zinc/Copper-Free Aluminum (Locknut), Nitrile (Sealing Ring) Material; 2 Inch Diameter X 1.81 Inch Length Size; Rigid/Imc Used on; UL 94, CSA Approval; Locknut Grounding Screw; 1 Inch Trade Size; Corrosion Resistant; Thermoplastic Insulated Throat Type; OCAL-BLUE[R] Brand; Maximum Panel Thickness 0.25 Inch; Temperature Rating 105 Deg C
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Rigid/EMT Conduit Hub
• Unspsc: 39131707
• UPC 12 Digit: 786210002804
• SKU Name: t&b h100grsst

Resources

• Manufacturer Spec Sheet
