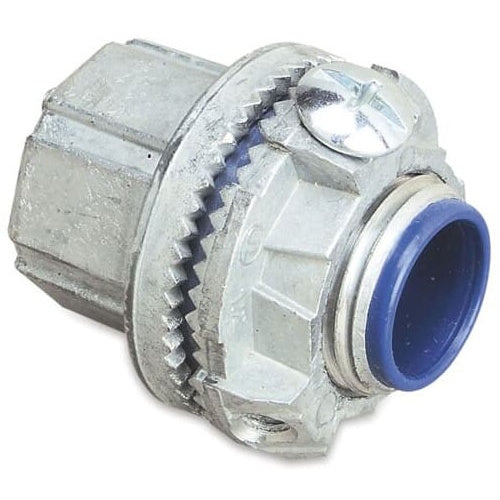

T&B H150GR-TB 1-1/2" Zinc Grounding Hub

Overview

T&B H150GR-TB 1-1/2" Zinc Grounding Hub

Product Specifications

• UPC: 78621091371
• Approval: UL, CSA
• Used On: Rigid/IMC Conduit
• Additional Information: Enclosure Type Class II Group E F G, Class III; Temperature Rating 0 to 105 Deg C; Application Hazardous Location; Applicable Standard NEC/CEC
• Catalog Number: H150GR-TB
• Type: Tapered Female Threaded, Bulkhead
• Throat Type: Thermoplastic Insulated
• Trade Size: 1-1/2 Inch
• Size: 2-3/4 Inch Diameter x 1-7/8 Inch Height
• Constructional Feature: NEMA 3R/4/13
• Ground Type: Grounding/Bonding Locknut
• Material: Die-Cast Zinc (Body/Locknut), Nitrile (Sealing Ring)
• Catalog Description: 1-1/2 INCH ZINC GROUNDING HUB WITH THERMOPLASTIC INSULATING THROAT, SEALING RING NITRILE (BUNA-N) FOR USE WITH RIGID/IMC CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Tapered Female Threaded, Bulkhead Type; Die-Cast Zinc (Body/Locknut), Nitrile (Sealing Ring) Material; 2-3/4 Inch Diameter X 1-7/8 Inch Height Size; Rigid/Imc Conduit Used on; UL, CSA Approval; Grounding/Bonding Locknut; 1-1/2 Inch Trade Size; NEMA 3R/4/13; Thermoplastic Insulated Throat Type; Bullet [R] Brand; Enclosure Type Class II Group E F G, Class III; Temperature Rating 0 to 105 Deg C; Application Hazardous Location; Applicable Standard Nec/Cec
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Rigid/EMT Conduit Hub
• Unspsc: 39131707
• UPC 12 Digit: 786210913711
• SKU Name: t&b h150grtb

Resources

• Manufacturer Spec Sheet
