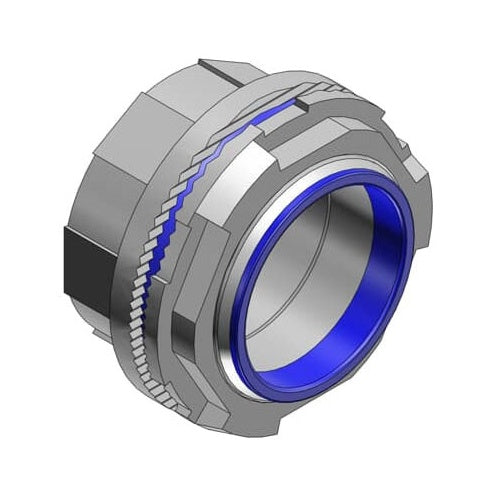

T&B H150-TB 1-1/2" Zinc Conduit Hub

Overview

T&B H150-TB 1-1/2" Zinc Conduit Hub

Product Specifications

• UPC: 78621050404
• Approval: UL, CSA
• Used On: Rigid/IMC
• Additional Information: Maximum Panel Thickness 1/4 Inch; Temperature Rating 105 Deg C
• Catalog Number: H150-TB
• Brand Name: T&B
• Type: Tapered Female Threaded, Bulkhead
• Throat Type: Thermoplastic Insulated
• Trade Size: 1-1/2 Inch
• Size: 2-3/4 Inch Diameter x 1-7/8 Inch Length
• Constructional Feature: NEMA 3R/4/13, Water Tight, Dust Tight
• Material: Die-Cast Zinc (Hub/Locknut), Nitrile (Sealing Ring)
• Catalog Description: 1-1/2 INCH ZINC HUB CONNECTOR WITH THERMOPLASTIC INSULATING THROAT, SEALING RING NITRILE (BUNA-N) FOR USE WITH RIGID/IMC CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Tapered Female Threaded, Bulkhead Type; Die-Cast Zinc (Hub/Locknut), Nitrile (Sealing Ring) Material; 2-3/4 Inch Diameter X 1-7/8 Inch Length Size; Rigid/Imc Used on; UL, CSA Approval; 1-1/2 Inch Trade Size; NEMA 3R/4/13, Water Tight, Dust Tight; Thermoplastic Insulated Throat Type; Bullet [R] Brand; Maximum Panel Thickness 1/4 Inch; Temperature Rating 105 Deg C
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Rigid/EMT Conduit Hub
• Unspsc: 39121311
• UPC 12 Digit: 786210504049
• SKU Name: t&b h150tb
