Product information
Overview

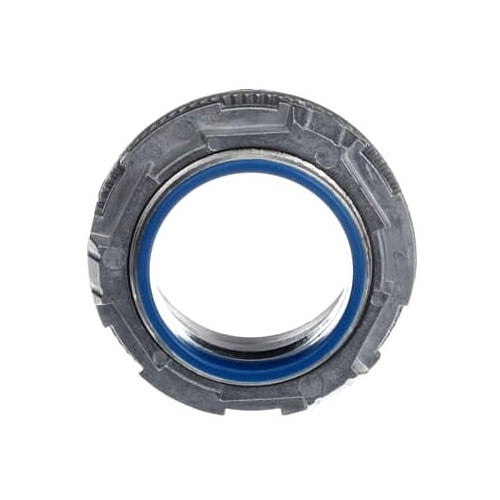

T&B H200A 2" Hub Connector W/Insulated Throat Aluminum
Product Specifications
- UPC: 78621090348
- Approval: UL, CSA
- Used On: Rigid/IMC
- Additional Information: Maximum Panel Thickness 1/4 Inch; Temperature Rating 105 Deg C
- Catalog Number: H200A
- Brand Name: T&B
- Type: Tapered Female Threaded, Bulkhead
- Throat Type: Thermoplastic Insulated
- Trade Size: 2 Inch
- Size: 3-1/4 Inch Diameter x 1-15/16 Inch Length
- Constructional Feature: NEMA 3R/4/13, Water Tight, Dust Tight
- Material: Copper-Free Aluminum (Hub/Locknut), Nitrile (Sealing Ring)
- Catalog Description: 2 INCH ALUMINUM, HUB CONNECTOR WITH THERMOPLASTIC INSULATING THROAT, SEALING RING NITRILE (BUNA-N) FOR USE WITH RIGID/IMC CONDUIT
- Category: Elbows-Couplings-Nipples - Aluminum
- Full Technical Description: Tapered Female Threaded, Bulkhead Type; Copper-Free Aluminum (Hub/Locknut), Nitrile (Sealing Ring) Material; 3-1/4 Inch Diameter X 1-15/16 Inch Length Size; Rigid/Imc Used on; UL, CSA Approval; 2 Inch Trade Size; NEMA 3R/4/13, Water Tight, Dust Tight; Thermoplastic Insulated Throat Type; Bullet [R] Brand; Maximum Panel Thickness 1/4 Inch; Temperature Rating 105 Deg C
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Rigid/EMT Conduit Hub
- Unspsc: 39121311
- UPC 12 Digit: 786210903484
- SKU Name: t&b h200a
