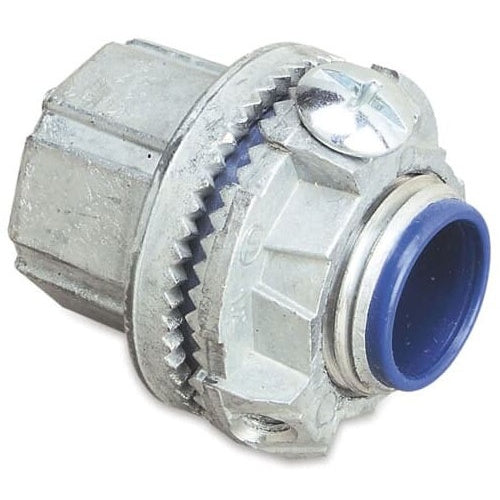

T&B H200GRSST 2" Hub Stainless Steel

Overview

T&B H200GRSST 2" Hub Stainless Steel

Product Specifications

• UPC: 78621000283
• Catalog Number: H200GRSST
• Brand Name: OCAL-BLUE[R]
• Trade Size: 2 Inch
• Body Material: 316 Stainless Steel
• Application: Rigid, Intermediate Metal Conduit
• Approval: UL, CSA
• Additional Information: Size 3.25 Inch Dia x 1.94 Inch H; Throat Size 1.97 Inch Dia; Enclosure Type Class I Div 2, Class II Div 1 and 2 Group E F G, Class III Div 1 and 2, NEMA 3R/4/4X/13; Includes Thermoplastic Throat, Nitrile Sealing Ring; Application Hazardous Location
• Catalog Description: 2 INCH 316 STAINLESS STEEL GROUNDING HUB, THERMOPLASTIC INSULATING THROAT, SEALING RING NITRILE (BUNA-N) FOR USE WITH RIGID/IMC CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: UL, CSA Approval; Rigid, Intermediate Metal Conduit Application; 316 Stainless Steel Body Material; 2 Inch Trade Size; Size 3.25 Inch Dia X 1.94 Inch H; Throat Size 1.97 Inch Dia; Enclosure Type Class I Div 2, Class II Div 1 and 2 Group E F G, Class III Div 1 and 2, NEMA 3R/4/4X/13; Includes Thermoplastic Throat, Nitrile Sealing Ring; Application Hazardous Location
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Grounding Conduit Hub
• Unspsc: 39131707
• UPC 12 Digit: 786210002835
• SKU Name: t&b h200grsst

Resources

• Manufacturer Spec Sheet
