Overview

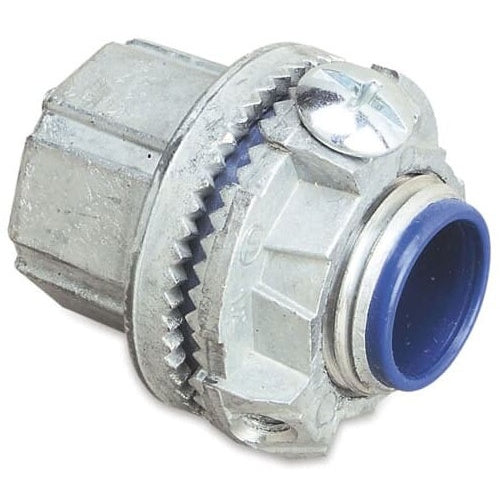

T&B H200GR-TB 2" Zinc Grounding Conduit Hub

Product Specifications

• UPC: 78621091372
• Approval: UL, CSA
• Used On: IMC/Rigid Conduit
• Additional Information: Maximum Panel Thickness 1/4 Inch; Throat Diameter 1-31/32 Inch; Temperature Rating 105 Deg C; Enclosure Rating NEMA 3R/4/13; Application Hazardous Location; Applicable Standard NEC/CEC
• Catalog Number: H200GR-TB
• Type: Bulkhead, Tapered Threaded
• Throat Type: Thermoplastic Insulated
• Trade Size: 2 Inch
• Size: 3-1/4 Inch Diameter x 1-15/16 Inch Height
• Constructional Feature: Water Tight
• Ground Type: Locknut Bonding/Grounding Screw
• Material: Die-Cast Zinc (Hub/Locknut), Nitrile (Sealing Ring)
• Catalog Description: 2 INCH ZINC GROUNDING HUB WITH THERMOPLASTIC INSULATING THROAT, SEALING RING NITRILE (BUNA-N) FOR USE WITH RIGID/IMC CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Bulkhead, Tapered Threaded Type; Die-Cast Zinc (Hub/Locknut), Nitrile (Sealing Ring) Material; 3-1/4 Inch Diameter X 1-15/16 Inch Height Size; Imc/Rigid Conduit Used on; UL, CSA Approval; Locknut Bonding/Grounding Screw; 2 Inch Trade Size; Water Tight; Thermoplastic Insulated Throat Type; Bullet [R] Brand; Maximum Panel Thickness 1/4 Inch; Throat Diameter 1-31/32 Inch; Temperature Rating 105 Deg C; Enclosure Rating NEMA 3R/4/13; Application Hazardous Location; Applicable Standard Nec/Cec
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Rigid/EMT Conduit Hub
• Unspsc: 39131707
• UPC 12 Digit: 786210913728
• SKU Name: t&b h200grtb

Resources

• Manufacturer Spec Sheet
