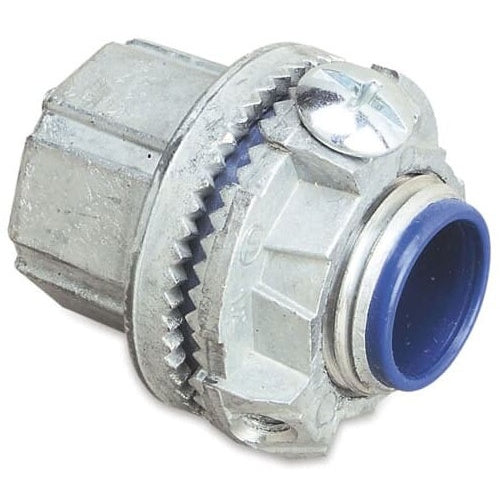

T&B H500GR-TB Bullet Hub 5" W/Ground Locknut

Overview

High voltage and current capacity for demanding applications, Weather-resistant and durable construction, Easy installation with secure locking mechanism, Optimized for minimal signal loss and maximum conductivity

Product Specifications

• UPC: 78621091377
• Approval: UL, CSA
• Used On: Rigid Conduit/IMC
• Additional Information: Maximum Panel Thickness 1/4 Inch; Temperature Rating 105 Deg C
• Catalog Number: H500GR-TB
• Type: Bulkhead, Tapered Female Threaded
• Throat Type: Thermoplastic Insulated
• Trade Size: 5 Inch
• Size: 6-7/8 Inch Dia x 3-1/32 Inch L
• Constructional Feature: Hazardous Location
• Ground Type: Locknut Bonding/Grounding Screw
• Material: Zinc Hub/Locknut, Nitrile Sealing Ring
• Catalog Description: 5 INCH ZINC GROUNDING HUB WITH THERMOPLASTIC INSULATING THROAT, SEALING RING NITRILE (BUNA-N) FOR USE WITH RIGID/IMC CONDUIT
• Category: Elbows-Couplings-Nipples - Aluminum
• Full Technical Description: Bulkhead, Tapered Female Threaded Type; Zinc Hub/Locknut, Nitrile Sealing Ring Material; 6-7/8 Inch Dia X 3-1/32 Inch L Size; Rigid Conduit/Imc Used on; UL, CSA Approval; Locknut Bonding/Grounding Screw; 5 Inch Trade Size; Hazardous Location; Thermoplastic Insulated Throat Type; BULLET[R] Brand; Maximum Panel Thickness 1/4 Inch; Temperature Rating 105 Deg C
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Rigid/EMT Conduit Hub
• Unspsc: 39131707
• UPC 12 Digit: 786210913773
• SKU Name: T&B H500GRTB
