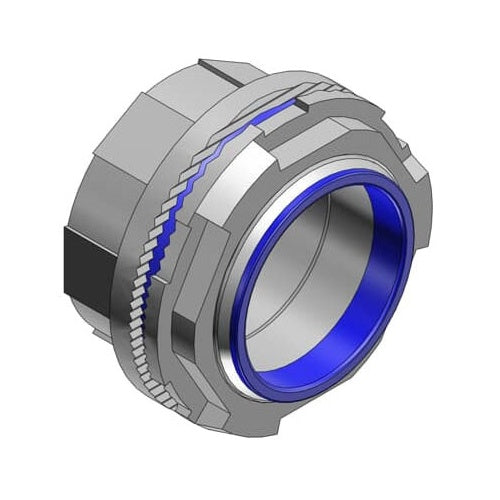

T&B H500-TB 5" Conduit Fitting

Overview

T&B H500-TB 5" Conduit Fitting

Product Specifications

• UPC: 78621089950
• Approval: UL, CSA
• Used On: IMC/Rigid Conduit
• Additional Information: Maximum Panel Thickness 1-15/16 Inch; Throat Diameter 4-15/16 Inch; Temperature Rating 105 Deg C; Enclosure Rating NEMA 3R/4/13; Application Hazardous Location; Applicable Standard NEC/CEC
• Catalog Number: H500-TB
• Type: Bulkhead, Tapered Threaded
• Throat Type: Thermoplastic Insulated
• Trade Size: 5 Inch
• Size: 6-7/8 Inch Diameter x 3-1/32 Inch Length
• Constructional Feature: Water Tight
• Ground Type: Locknut
• Material: Die-Cast Zinc (Hub/Locknut), Nitrile (Sealing Ring)
• Catalog Description: 5 INCH ZINC HUB CONNECTOR WITH THERMOPLASTIC INSULATING THROAT, SEALING RING NITRILE (BUNA-N) FOR USE WITH RIGID/IMC CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Bulkhead, Tapered Threaded Type; Die-Cast Zinc (Hub/Locknut), Nitrile (Sealing Ring) Material; 6-7/8 Inch Diameter X 3-1/32 Inch Length Size; Imc/Rigid Conduit Used on; UL, CSA Approval; Locknut; 5 Inch Trade Size; Water Tight; Thermoplastic Insulated Throat Type; BULLET[R] Brand; Maximum Panel Thickness 1-15/16 Inch; Throat Diameter 4-15/16 Inch; Temperature Rating 105 Deg C; Enclosure Rating NEMA 3R/4/13; Application Hazardous Location; Applicable Standard Nec/Cec
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Rigid/EMT Conduit Hub
• Unspsc: 39121311
• UPC 12 Digit: 786210899503
• SKU Name: t&b h500tb

Resources

• Manufacturer Spec Sheet
