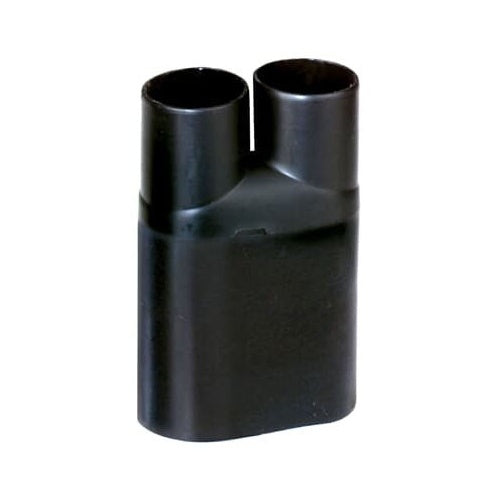

T&B HSB200-75-2 Heat-Shrink Boot Heavywall 2 Legs No3-300

Overview

High-performance electrical distribution capabilities

Product Specifications

• UPC: 78621087215
• Conductor Leg Inner Diameter: 0.3 TO 0.9 INCH
• Temperature Rating: -55 TO 100 DEG C
• Approval: UL, CSA
• Catalog Number: HSB200-75-2
• Brand Name: Shrink-Kon[R]
• Type: HEAT SHRINK BOOT
• Number Of Legs: 2
• Voltage Rating: 280 V/MIL
• Cable Size: 3 AWG TO 300 MCM
• Shrink Temperature: 135 DEG C
• Cable Entry Inner Diameter: 0.83 TO 1.97 INCH
• Catalog Description: HEAT-SHRINKABLE HSB SERIES BREAKOUT BOOTS FOR CABLE RANGE 3 - 300 AWG, EXPANDED DIA. 1.97, LENGTH 4.69 INCH, RATED FOR 600 VOLT, 90 DEGREES CONTINUOUS USE, MATERIAL: CROSS-LINKED POLYOLEFIN WITH THERMOPLASTIC ADHESIVE LINER, BLACK
• Category: Insulating Materials
• Full Technical Description: Heat Shrink Boot Type; 3 AWG to 300 MCM Cable Size; UL, CSA Approval; 280 V/Mil Voltage Rating; -55 to 100 Deg C Temperature Rating; 2 Leg(S); 135 Deg C Shrink Temperature; 0.83 to 1.97 Inch Cable Entry Inner Diameter; 0.3 to 0.9 Inch Conductor Leg Inner Diameter; SHRINK-KON[R] Brand
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Shrink Tubing Boot
• Unspsc: 39121723
• UPC 12 Digit: 786210872155
• SKU Name: T&B HSB200752
