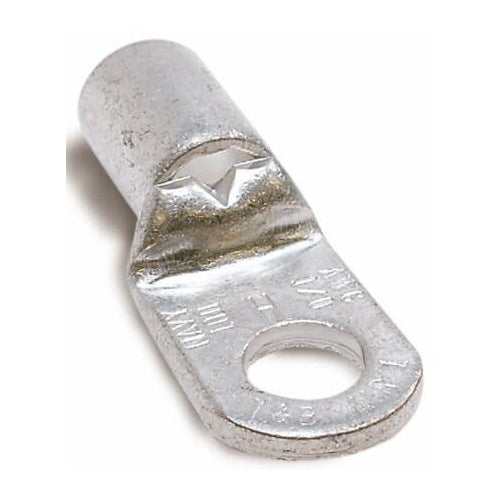

T&B J20-38 Non-Insulated - Tub Ring Terminal 2/0, 3/8,

Overview

T&B J20-38 Non-Insulated - Tub Ring Terminal 2/0, 3/8,

Product Specifications

• UPC: 78621080370
• Standard Package: 10
• Approval: UL 486-A, CSA 22.2
• Additional Information: Dimension 1.84 Inch L x 0.83 Inch W x 0.06 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V
• Catalog Number: J20-38
• Model: J
• Type: Standard
• Maximum Conductor Size: 2/0 AWG
• Color: Metallic
• Insulation Type: Non-Insulated
• Stud Size: 3/8 Inch
• Temperature Rating: 150 Deg C
• Catalog Description: NON-INSULATED TUBULAR RING TERMINAL, LENGTH 1.84 INCHES, WIDTH .83 INCHES, BOLT HOLE 3/8 INCH, WIRE RANGE 1/0AN-2/0, COPPER, TIN PLATED
• Category: Large Terminals & Connectors
• Full Technical Description: Standard Type; Metallic Color; 2/0 AWG Max. Conductor Size; UL 486-A, CSA 22.2 Approval; 150 Deg C Temperature Rating; 10 Standard Package; 3/8 Inch Stud Size; Non-Insulated Insulation Type; Dimension 1.84 Inch L X 0.83 Inch W X 0.06 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V; J Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210803708
• SKU Name: t&b j2038
