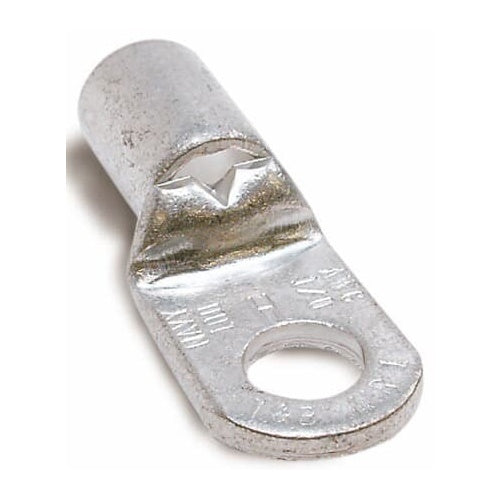

T&B J973 Non-Insulated Tub Ring 1/0An-2/0 3/8"

Overview

T&B J973 Non-Insulated Tub Ring 1/0An-2/0 3/8"

Product Specifications

• UPC: 78621081567
• Approval: UL 486A/B, CSA 22.2
• Additional Information: Size 1.99 Inch Length x 0.84 Inch Width; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper
• Catalog Number: J973
• Type: Large, Tubular
• Minimum Conductor Size: 1/0 AWG (Aircraft Wire)
• Maximum Conductor Size: 2/0 AWG
• Insulation Type: Non-Insulated
• Stud Size: 3/8 Inch
• Temperature Rating: 150 Deg C
• Standard Package: 50 per Pack
• Catalog Description: NON-INSULATED TUBULAR RING TERMINAL, LENGTH 1.99 INCHES, WIDTH .84 INCHES, BOLT HOLE 3/8 INCH, WIRE RANGE 1/0AN-2/0, COPPER, TIN PLATED, 50 PACK
• Category: Large Terminals & Connectors
• Full Technical Description: Large, Tubular Type; 1/0 AWG (Aircraft Wire) min. Conductor Size; 2/0 AWG Max. Conductor Size; UL 486A/B, CSA 22.2 Approval; 150 Deg C Temperature Rating; 50 Per Pack Standard Package; 3/8 Inch Stud Size; Non-Insulated Insulation Type; Size 1.99 Inch Length X 0.84 Inch Width; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210815671
• SKU Name: t&b j973
