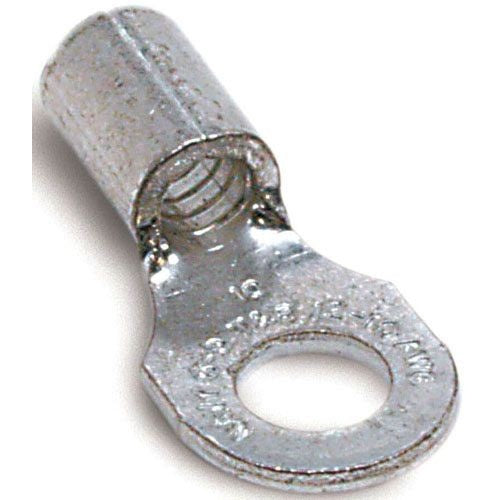

T&B K10-14R-M Non-Insulated Ring Terminal, 12-10, 1/4

Overview

T&B K10-14R-M Non-Insulated Ring Terminal, 12-10, 1/4

Product Specifications

• UPC: 78621010899
• Approval: UL 486-A, UL (CANADA AND US), CSA
• Additional Information: BRAZED SEAM SERRATED CHAMFERED BARREL; MATERIAL ELECTRO TIN PLATED COPPER
• Catalog Number: K10-14R-M
• Brand Name: Spec-Kon[T]
• Type: STANDARD
• Minimum Conductor Size: 12 AWG
• Maximum Conductor Size: 10 AWG
• Insulation Type: NON INSULATED
• Stud Size: 1/4 INCH
• Standard Package: 1000 PER BOX
• Catalog Description: NON-INSULATED RING TERMINAL, LENGTH .866 INCHES, WIDTH .472 INCHES, BOLT HOLE 1/4 INCH, WIRE RANGE #12-10 AWG, COPPER, TIN PLATED
• Category: Small Terminals & Connectors
• Full Technical Description: Standard Type; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL 486-A, UL (Canada and Us), CSA Approval; 1000 Per Box Standard Package; 1/4 Inch Stud Size; Non Insulated Insulation Type; SPEC-KON[T] Brand; Brazed Seam Serrated Chamfered Barrel; Material Electro Tin Plated Copper
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210108995
• SKU Name: t&b k1014rm

Resources

• Manufacturer Spec Sheet
