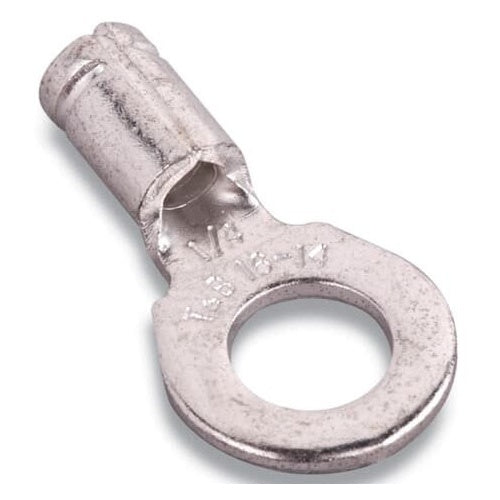

T&B K2-14R-CC Non Insulated Ring No2Awg 1/4" Stud

Overview

T&B K2-14R-CC Non Insulated Ring No2Awg 1/4" Stud

Product Specifications

• UPC: 78621076947
• Standard Package: 200 per Box
• Approval: UL 486-A, UL (Canada and US), CSA
• Additional Information: Dimension 1.535 Inch L x 0.602 Inch W x 0.071 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V
• Catalog Number: K2-14R-CC
• Model: K2
• Type: Standard
• Maximum Conductor Size: 2 AWG
• Color: Metallic
• Insulation Type: Non-Insulated
• Stud Size: 1/4 Inch
• Temperature Rating: 105 Deg C
• Catalog Description: NON-INSULATED LARGE RING TERMINAL FOR WIRE RANGE 2 AWG STUD SIZE 1/4, METALLIC
• Category: Small Terminals & Connectors
• Full Technical Description: Standard Type; Metallic Color; 2 AWG Max. Conductor Size; UL 486-A, UL (Canada and Us), CSA Approval; 105 Deg C Temperature Rating; 200 Per Box Standard Package; 1/4 Inch Stud Size; Non-Insulated Insulation Type; Dimension 1.535 Inch L X 0.602 Inch W X 0.071 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V; K2 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210769479
• SKU Name: t&b k214rcc

Resources

• Manufacturer Spec Sheet
