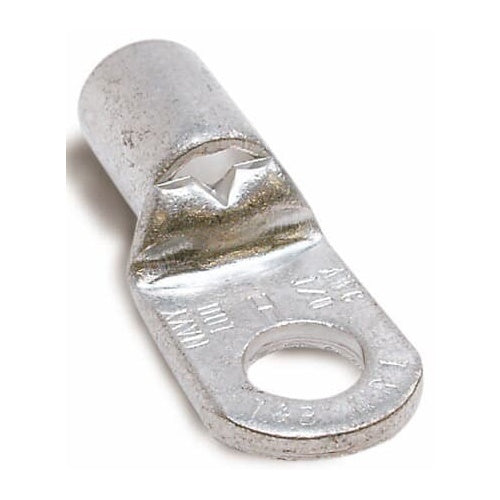

T&B K30-38 Non-Insulated - Tub Ring Terminal 3/0, 3/8,

Overview

T&B K30-38 Non-Insulated - Tub Ring Terminal 3/0, 3/8,

Product Specifications

• UPC: 78621080371
• Approval: UL 486-A, CSA 22.2
• Additional Information: DIMENSION 2.08 INCH LENGTH X 0.93 INCH WIDTH X 0.06 INCH THICK; SERRATED BARREL; MATERIAL ELECTROLYTIC TIN PLATED COPPER
• Catalog Number: K30-38
• Brand Name: Sta-Kon.
• Model: K
• Type: STANDARD
• Maximum Conductor Size: 3/0 AWG
• Insulation Type: NON INSULATED
• Stud Size: 3/8 INCH
• Standard Package: 5
• Catalog Description: NON-INSULATED - TUBULAR RING TERMINAL FOR WIRE RANGE 3/0 STUD SIZE 3/8, METALLIC
• Category: Large Terminals & Connectors
• Full Technical Description: Standard Type; 3/0 AWG Max. Conductor Size; UL 486-A, CSA 22.2 Approval; 5 Standard Package; 3/8 Inch Stud Size; Non Insulated Insulation Type; Sta-Kon. Brand; Dimension 2.08 Inch Length X 0.93 Inch Width X 0.06 Inch Thick; Serrated Barrel; Material Electrolytic Tin Plated Copper; K Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210803715
• SKU Name: t&b k3038
