Product information
Overview

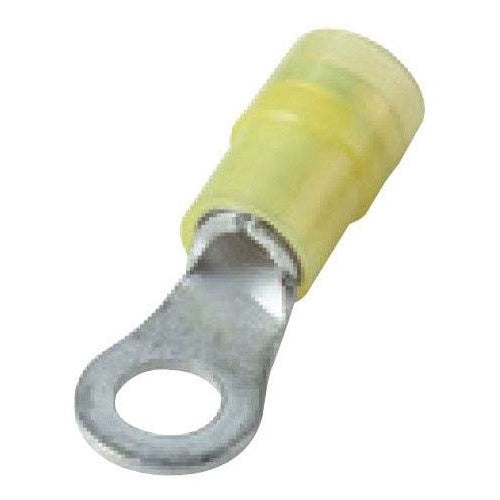

T&B KN10-10R-D Nylon Ring 12-10 Stud No10 Yellow
Product Specifications
- UPC: 78621010161
- Temperature Rating: 105 Deg C
- Standard Package: 500 per Box
- Approval: UL 486-A, UL (Canada and US), CSA
- Additional Information: Dimension 1.047 Inch L x 0.374 Inch W x 0.039 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V
- Catalog Number: KN10-10R-D
- Model: KN10
- Type: Funnel Entry
- Minimum Conductor Size: 12 AWG
- Maximum Conductor Size: 10 AWG
- Color: Yellow
- Insulation Type: Nylon Insulated
- Stud Size: #10
- Catalog Description: INSULATED NYLON RING TERMINAL FOR WIRE RANGE 12-10 STUD SIZE #10, YELLOW
- Category: Small Terminals & Connectors
- Full Technical Description: Funnel Entry Type; Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL 486-A, UL (Canada and Us), CSA Approval; 105 Deg C Temperature Rating; 500 Per Box Standard Package; #10 Stud Size; Nylon Insulated Insulation Type; Dimension 1.047 Inch L X 0.374 Inch W X 0.039 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V; KN10 Model
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Ring Lug
- Unspsc: 39121432
- UPC 12 Digit: 786210101613
- SKU Name: t&b kn1010rd
