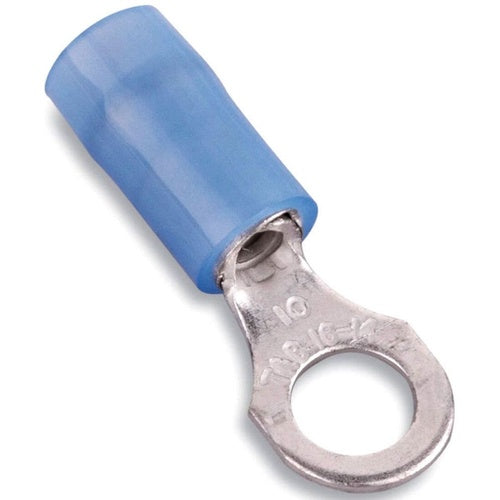

T&B KN14-14R-M Nylon Ring, 16-14, 1/4 Stud

Overview

T&B KN14-14R-M Nylon Ring, 16-14, 1/4 Stud

Product Specifications

• UPC: 78621010217
• Approval: UL, UL (Canada and US), CSA
• Additional Information: Barrel Type Brazed Seam; Voltage Rating 600 Volt; Overall Dimension 1.094 Inch Length x 0.472 Inch Width; Material Copper
• Catalog Number: KN14-14R-M
• Type: Molded Funnel Entry
• Minimum Conductor Size: 16 AWG
• Maximum Conductor Size: 14 AWG
• Color: Blue
• Insulation Type: Nylon Insulated
• Stud Size: 1/4 Inch
• Standard Package: 1000
• Catalog Description: INSULATED NYLON RING TERMINAL FOR WIRE RANGE 16-14 STUD SIZE 1/4, BLUE
• Category: Small Terminals & Connectors
• Full Technical Description: Molded Funnel Entry Type; Blue Color; 16 AWG min. Conductor Size; 14 AWG Max. Conductor Size; UL, UL (Canada and Us), CSA Approval; 1000 Standard Package; 1/4 Inch Stud Size; Nylon Insulated Insulation Type; Barrel Type Brazed Seam; Voltage Rating 600 Volt; Overall Dimension 1.094 Inch Length X 0.472 Inch Width; Material Copper
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210102177
• SKU Name: t&b kn1414rm
