Product information
Overview

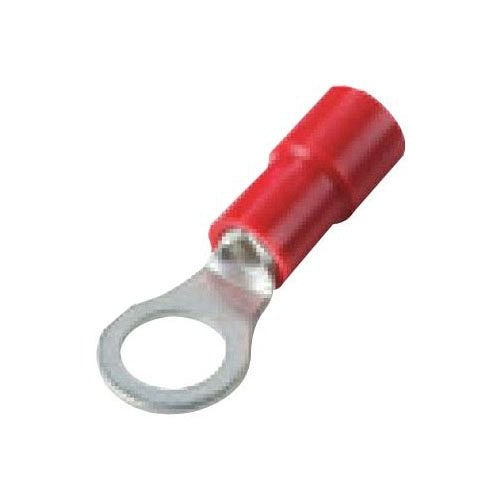

T&B KV18-14R-M Vinyl Ring, 22-16, 1/4 Stud
Product Specifications
- UPC: 78621010092
- Temperature Rating: 75 DEG C
- Standard Package: 1000 PER BOX
- Approval: UL 486-A, UL (CANADA AND US), CSA
- Additional Information: BRAZED SEAM SERRATED BARREL; MATERIAL ELECTRO TIN PLATED COPPER
- Catalog Number: KV18-14R-M
- Brand Name: Spec-Kon[T]
- Type: FUNNEL ENTRY
- Minimum Conductor Size: 22 AWG
- Maximum Conductor Size: 16 AWG
- Color: RED
- Insulation Type: VINYL INSULATED
- Stud Size: 1/4 INCH
- Catalog Description: VINYL INSULATED RING TERMINAL, LENGTH 1.094 INCHES, WIDTH .457 INCHES, BOLT HOLE 1/4 INCH, WIRE RANGE #22-#18 AWG, COLOR RED, COPPER, TIN PLATED
- Category: Small Terminals & Connectors
- Full Technical Description: Funnel Entry Type; Red Color; 22 AWG min. Conductor Size; 16 AWG Max. Conductor Size; UL 486-A, UL (Canada and Us), CSA Approval; 75 Deg C Temperature Rating; 1000 Per Box Standard Package; 1/4 Inch Stud Size; Vinyl Insulated Insulation Type; SPEC-KON[T] Brand; Brazed Seam Serrated Barrel; Material Electro Tin Plated Copper
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Ring Lug
- Unspsc: 39121432
- UPC 12 Digit: 786210100920
- SKU Name: t&b kv1814rm
