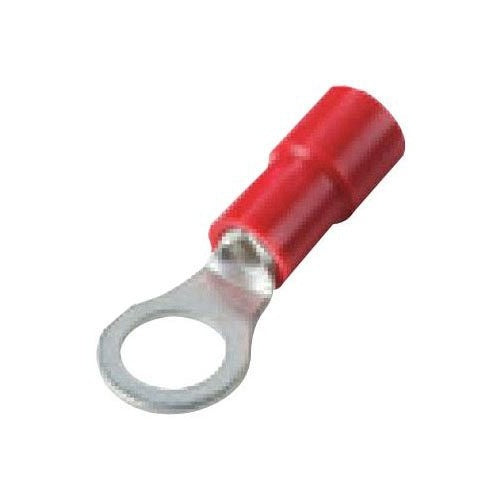

T&B KV18-516R-M Vinyl Ring, 22-16, 5/16 Stud

Overview

T&B KV18-516R-M Vinyl Ring, 22-16, 5/16 Stud

Product Specifications

• UPC: 78621010094
• Temperature Rating: 75 DEG C
• Standard Package: 1000 PER BOX
• Approval: UL 486-A, UL (CANADA AND US), CSA
• Additional Information: BRAZED SEAM SERRATED BARREL; MATERIAL ELECTRO TIN PLATED COPPER
• Catalog Number: KV18-516R-M
• Brand Name: Spec-Kon[T]
• Type: FUNNEL ENTRY
• Minimum Conductor Size: 22 AWG
• Maximum Conductor Size: 16 AWG
• Color: RED
• Insulation Type: VINYL INSULATED
• Stud Size: 5/16 INCH
• Catalog Description: VINYL RING WIRE RANGE 22-18 BOLT HOLE 5/16
• Category: Small Terminals & Connectors
• Full Technical Description: Funnel Entry Type; Red Color; 22 AWG min. Conductor Size; 16 AWG Max. Conductor Size; UL 486-A, UL (Canada and Us), CSA Approval; 75 Deg C Temperature Rating; 1000 Per Box Standard Package; 5/16 Inch Stud Size; Vinyl Insulated Insulation Type; SPEC-KON[T] Brand; Brazed Seam Serrated Barrel; Material Electro Tin Plated Copper
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210100944
• SKU Name: t&b kv18516rm

Resources

• Manufacturer Spec Sheet
