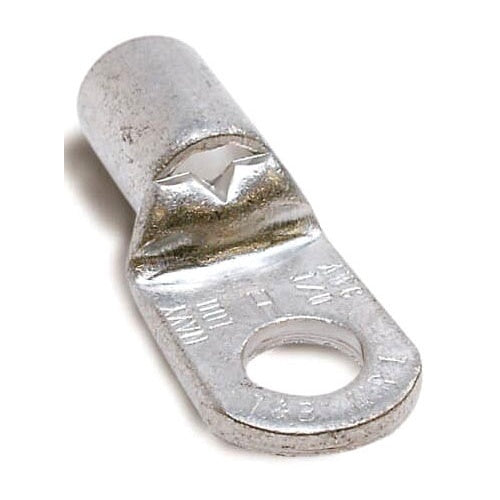

T&B L40-38 Non-Insulated - Tub Ring Terminal 4/0, 3/8,

Overview

T&B L40-38 Non-Insulated - Tub Ring Terminal 4/0, 3/8,

Product Specifications

• UPC: 78621080599
• Standard Package: 5
• Approval: UL 486-A, CSA 22.2
• Additional Information: Dimension 2-1/4 Inch L x 1.04 Inch W x 0.07 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V
• Catalog Number: L40-38
• Model: L
• Type: Standard
• Maximum Conductor Size: 4/0 AWG
• Color: Metallic
• Insulation Type: Non-Insulated
• Stud Size: 3/8 Inch
• Temperature Rating: 150 Deg C
• Catalog Description: NON-INSULATED TUBULAR RING TERMINAL, LENGTH 2.25 INCHES, WIDTH 1.04 INCHES, BOLT HOLE 3/8 INCH, WIRE RANGE 3/0AN-4/0, COPPER, TIN PLATED
• Category: Large Terminals & Connectors
• Full Technical Description: Standard Type; Metallic Color; 4/0 AWG Max. Conductor Size; UL 486-A, CSA 22.2 Approval; 150 Deg C Temperature Rating; 5 Standard Package; 3/8 Inch Stud Size; Non-Insulated Insulation Type; Dimension 2-1/4 Inch L X 1.04 Inch W X 0.07 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V; L Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210805993
• SKU Name: t&b l4038
