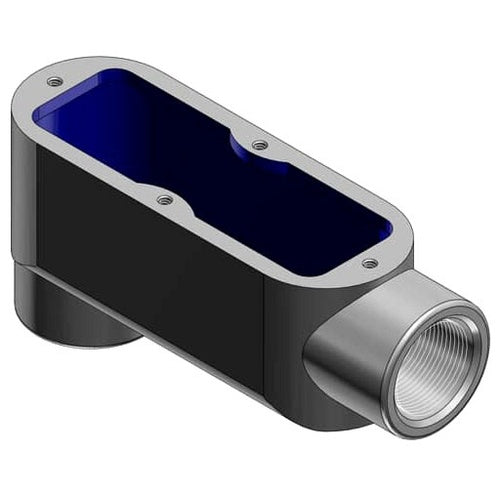

T&B LB18 1/2" Conduit Body, Gray Iron, LB Form-8

Product Specifications

• UPC: 78621016560
• Size: 4.94 Inch Length x 1.38 Inch Width x 2.22 Inch Height
• Installation: Threaded
• Material: Zinc Plated with Epoxy Powder Coated Gray Iron
• Form Type: Form 8
• Approval: UL 514A/514B/E2969, CSA C22.2
• Used On: Rigid/IMC Conduit
• Additional Information: Includes (2) Mounting Hole; Applicable Standard Federal Specification WC-586D
• Catalog Number: LB18
• Brand Name: BlueKote[R]
• Model: LB
• Access Opening: Back
• Configuration: LB
• Hub Location: 90 Degree
• Number Of Hubs: 2
• Hub Size: 1/2 Inch
• Catalog Description: 1/2 INCH FORM 8, LB CONDUIT BODY, BODY MATERIAL GRAY IRON WITH ZINC PLATING AND BAKED ON EPOXY POWDER COAT WITH BLUEKOTE INTERNAL COATING FOR USE WITH RIGID/IMC CONDUIT
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Sand Cast Zinc Plated, Aluminum Acrylic Coated Gray Iron Alloy Body, Neoprene Gasket, Stainless Steel Screw Material; 4-15/16 Inch L X 1-3/8 Inch W X 2.219 Inch H Size; Rigid/Imc Conduit Used on; 1/2 Inch Hub Size; Threaded Installation; lb Configuration; 2 Hub(S); UL 514A, UL 514B, CSA 22.2 Approval; Sand Cast Zinc Plated, Aluminum Acrylic Coated Gray (Iron Alloy), Stamped Zinc Plated, Clear Chromate Coated (Steel), Screw-on Cover Type; 90 Deg Hub Location; Form 8 Form Type; Back Access Opening; BLUEKOTE[R] Brand; Applicable Standard Federal Specification WC-586D
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 786210165608
• SKU Name: t&b lb18
