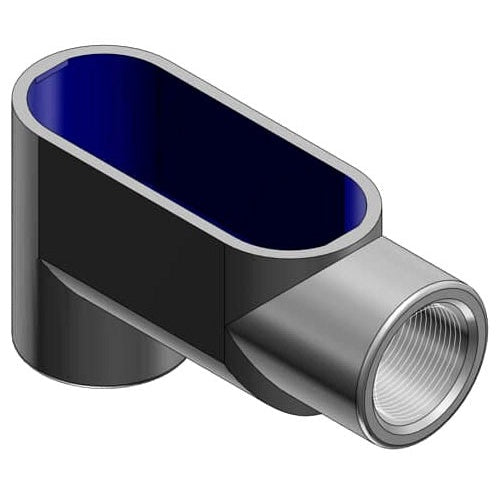

T&B LB37 1" Bluekote LB Conduit Body Form-7 Iron

Product Specifications

• UPC: 78621092462
• Hub Size: 1 Inch
• Size: 6 Inch Length x 1.8 Inch Width x 2.65 Inch Height
• Installation: Threaded
• Material: Zinc Plated, Acrylic Epoxy Coated and Internal PTFE Based Bluekote Coated Gray Iron (Body), Stainless Steel Screw, Neoprene Gasket
• Form Type: Form 7
• Approval: UL 514A, UL 514B, CSA 22.2
• Used On: IMC/Rigid Conduit
• Additional Information: Applicable Standard Federal Specification WC-586D
• Catalog Number: LB37
• Brand Name: Elastimold
• Model: LB
• Access Opening: Back
• Configuration: LB
• Cover Type: Sand Cast Zinc Plated, Aluminum Acrylic Coated Gray (Iron Alloy), Stamped Zinc Plated, Clear Chromate Coated (Steel), Screw-On
• Hub Location: 90 Degree
• Number Of Hubs: 2
• Catalog Description: 1 INCH FORM 7, LB CONDUIT BODY, BODY MATERIAL GRAY IRON WITH ZINC PLATING AND BAKED ON EPOXY POWDER COAT WITH BLUEKOTE INTERNAL COATING FOR USE WITH RIGID/IMC CONDUIT
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Zinc Plated, Acrylic Epoxy Coated and Internal PTFE Based Bluekote Coated Gray Iron (Body), Stainless Steel Screw, Neoprene Gasket Material; 6 Inch Length X 1.8 Inch Width X 2.65 Inch Height Size; Imc/Rigid Conduit Used on; 1 Inch Hub Size; Threaded Installation; lb Configuration; 2 Hub(S); UL 514A, UL 514B, CSA 22.2 Approval; Sand Cast Zinc Plated, Aluminum Acrylic Coated Gray (Iron Alloy), Stamped Zinc Plated, Clear Chromate Coated (Steel), Screw-on Cover Type; 90 Degree Hub Location; Form 7 Form Type; Back Access Opening; BLUEKOTE[R] Brand; Applicable Standard Federal Specification WC-586D; LB Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 786210924625
• SKU Name: t&b lb37
