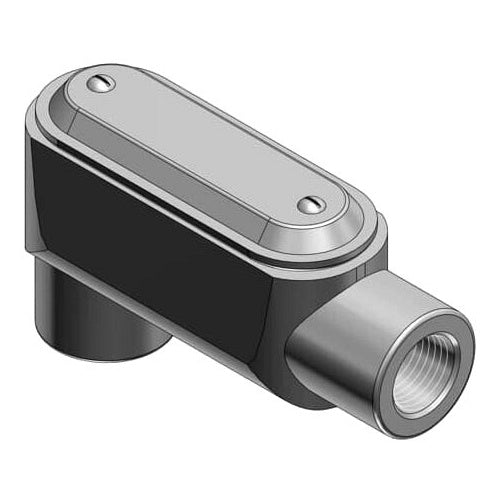

T&B LB47CG-TB 1-1/4" C-Body, Cover Gasket, LB, Form-7

Overview

T&B LB47CG-TB 1-1/4" C-Body, Cover Gasket, LB, Form-7

Product Specifications

• UPC: 78621091670
• Installation: Threaded
• Material: Zinc Plating, Acrylic Epoxy Coating and Internal PTFE Based Bluekote Coating Gray Iron Body, Stainless Steel Screw, Neoprene Gasket
• Form Type: Form 7
• Approval: UL E2969, CSA
• Used On: Rigid/IMC Conduit
• Additional Information: Includes Cover, Gasket, Screw
• Catalog Number: LB47CG-TB
• Brand Name: BlueKote[R]
• Access Opening: Back
• Configuration: LB
• Cover Type: Zinc Plating Stamped Steel
• Hub Location: 90 Deg
• Number Of Hubs: 2
• Hub Size: 1-1/4 Inch
• Catalog Description: 1-1/4 INCH FORM 7 (LB) BACK OPENING PRE-ASSEMBLED CONDUIT BODY, COVER AND GASKET, BODY MATERIAL GRAY IRON/ZINC PLATING AND BAKED ON EPOXY POWDER COAT WITH BLUEKOTE INTERNAL COATING, COVER MATERIAL AND FINISH STAMPED STEEL/ZINC PLATING
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Zinc Plating, Acrylic Epoxy Coating and Internal PTFE Based Bluekote Coating Gray Iron Body, Stainless Steel Screw, Neoprene Gasket Material; Rigid/Imc Conduit Used on; 1-1/4 Inch Hub Size; Threaded Installation; lb Configuration; 2 Hub(S); UL E2969, CSA Approval; Zinc Plating Stamped Steel Cover Type; 90 Deg Hub Location; Form 7 Form Type; Back Access Opening; BLUEKOTE[R] Brand; Includes Cover, Gasket, Screw
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 786210916705
• SKU Name: t&b lb47cgtb

Resources

• Manufacturer Spec Sheet
