Overview

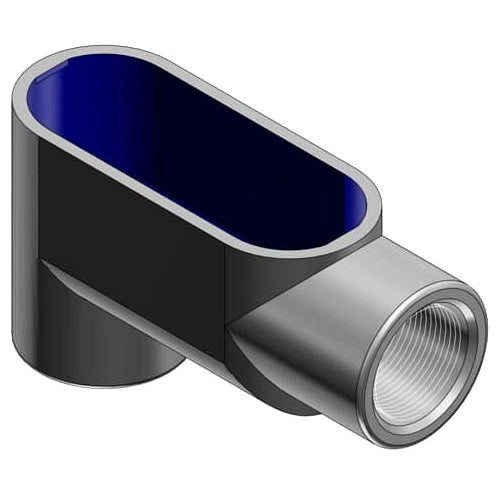

T&B LB67 2" Bluekote LB Conduit Body Form-7 Iron

Product Specifications

• UPC: 78621093339
• Hub Size: 2 Inch
• Size: 8.3 Inch Length x 3.1 Inch Width x 4.45 Inch Height
• Installation: Threaded
• Material: PTFE Based BlueKote Coated Internal, Zinc Plated with Acrylic Epoxy Coated Class 30 Gray Iron Alloy
• Form Type: Form 7
• Approval: UL, CSA
• Used On: IMC/Rigid Conduit
• Catalog Number: LB67
• Brand Name: BlueKote[R]
• Model: LB
• Access Opening: Back
• Configuration: LB
• Cover Type: Zinc Plated Stamped Steel with Clear Chromate Coating
• Hub Location: 90 Degree
• Number Of Hubs: 2
• Catalog Description: 2 INCH FORM 7, LB CONDUIT BODY, BODY MATERIAL GRAY IRON WITH ZINC PLATING AND BAKED ON EPOXY POWDER COAT WITH BLUEKOTE INTERNAL COATING FOR USE WITH RIGID/IMC CONDUIT
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: PTFE Based Bluekote Coated Internal, Zinc Plated With Acrylic Epoxy Coated Class 30 Gray Iron Alloy Material; 8.3 Inch Length X 3.1 Inch Width X 4.45 Inch Height Size; Imc/Rigid Conduit Used on; 2 Inch Hub Size; Threaded Installation; lb Configuration; 2 Hub(S); UL, CSA Approval; Zinc Plated Stamped Steel With Clear Chromate Coating Cover Type; 90 Degree Hub Location; Form 7 Form Type; Back Access Opening; BLUEKOTE[R] Brand; LB Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 786210933399
• SKU Name: t&b lb67

Resources

• Manufacturer Spec Sheet
