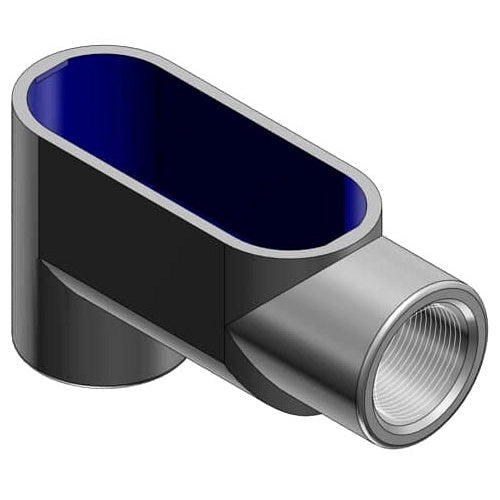

T&B LB87 3" Conduit Body, Gray Iron, LB Form-7

Overview

T&B LB87 3" Conduit Body, Gray Iron, LB Form-7

Product Specifications

• UPC: 78621093341
• Size: 10.55 Inch L x 4.25 Inch W x 5.95 Inch H
• Installation: Threaded
• Material: Sand Cast Zinc Plated, Aluminum Acrylic Coated Gray Iron Alloy Body, Neoprene Gasket, Stainless Steel Screw
• Form Type: Form 7
• Approval: UL 514A, UL 514B, CSA 22.2
• Used On: Rigid/IMC Conduit
• Additional Information: Applicable Standard Federal Specification WC-586D
• Catalog Number: LB87
• Brand Name: BlueKote[R]
• Access Opening: Back
• Configuration: LB
• Cover Type: Sand Cast Zinc Plated, Aluminum Acrylic Coated Gray (Iron Alloy), Stamped Zinc Plated, Clear Chromate Coated (Steel), Screw-On
• Hub Location: 90 Deg
• Number Of Hubs: 2
• Hub Size: 3 Inch
• Catalog Description: 3 INCH FORM 7, LB CONDUIT BODY, BODY MATERIAL GRAY IRON WITH ZINC PLATING AND BAKED ON EPOXY POWDER COAT WITH BLUEKOTE INTERNAL COATING FOR USE WITH RIGID/IMC CONDUIT
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Sand Cast Zinc Plated, Aluminum Acrylic Coated Gray Iron Alloy Body, Neoprene Gasket, Stainless Steel Screw Material; 10.55 Inch L X 4.25 Inch W X 5.95 Inch H Size; Rigid/Imc Conduit Used on; 3 Inch Hub Size; Threaded Installation; lb Configuration; 2 Hub(S); UL 514A, UL 514B, CSA 22.2 Approval; Sand Cast Zinc Plated, Aluminum Acrylic Coated Gray (Iron Alloy), Stamped Zinc Plated, Clear Chromate Coated (Steel), Screw-on Cover Type; 90 Deg Hub Location; Form 7 Form Type; Back Access Opening; BLUEKOTE[R] Brand; Applicable Standard Federal Specification WC-586D
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 786210933412
• SKU Name: t&b lb87
