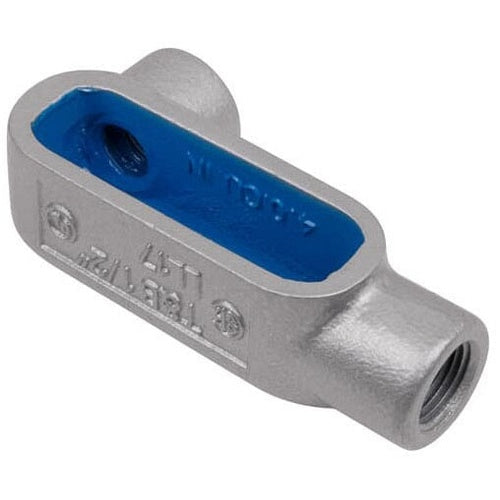

T&B LL57 1-1/2" Bluekote Conduit Body Form 7

Product Specifications

• UPC: 78621093346
• Hub Size: 1-1/2 Inch
• Size: 7.9 Inch Length x 3.8 Inch Width x 2.6 Inch Height
• Installation: Threaded
• Material: PTFE Based BlueKote Coated Internal, Zinc Plated with Acrylic Epoxy Coated Class 30 Gray Iron Alloy
• Form Type: Form 7
• Approval: UL, CSA
• Used On: IMC/Rigid Conduit
• Catalog Number: LL57
• Brand Name: BlueKote[R]
• Model: LL
• Access Opening: 90 Degree Left Side
• Configuration: LL
• Cover Type: Zinc Plated Stamped Steel with Clear Chromate Coating
• Hub Location: 90 Degree
• Number Of Hubs: 2
• Catalog Description: 1-1/2 INCH FORM 7, LL CONDUIT BODY, BODY MATERIAL GRAY IRON WITH ZINC PLATING AND BAKED ON EPOXY POWDER COAT WITH BLUEKOTE INTERNAL COATING FOR USE WITH RIGID/IMC CONDUIT
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: PTFE Based Bluekote Coated Internal, Zinc Plated With Acrylic Epoxy Coated Class 30 Gray Iron Alloy Material; 7.9 Inch Length X 3.8 Inch Width X 2.6 Inch Height Size; Imc/Rigid Conduit Used on; 1-1/2 Inch Hub Size; Threaded Installation; LL Configuration; 2 Hub(S); UL, CSA Approval; Zinc Plated Stamped Steel With Clear Chromate Coating Cover Type; 90 Degree Hub Location; Form 7 Form Type; 90 Degree Left Side Access Opening; LL Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 786210933467
• SKU Name: t&b ll57
