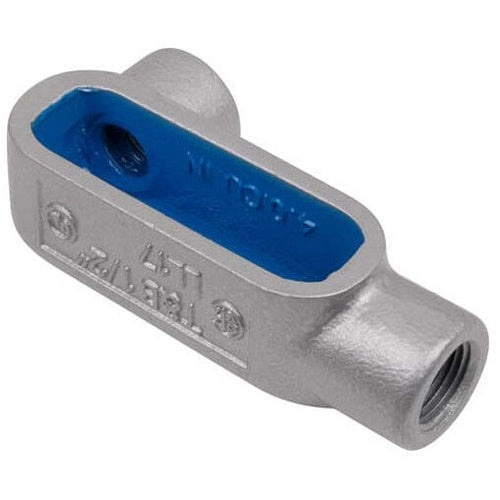

T&B LL97 3-1/2" Conduit Body, Iron, Ll Form-7

Overview

T&B LL97 3-1/2" Conduit Body, Iron, Ll Form-7

Product Specifications

• UPC: 78621093350
• Installation: THREADED
• Material: SAND CAST ZINC PLATED, ALUMINUM ACRYLIC COATED GRAY IRON ALLOY BODY, NEOPRENE GASKET, STAINLESS STEEL SCREW
• Form Type: FORM 7
• Approval: UL 514-A, UL 514-B, CSA 22.2
• Used On: RIGID CONDUIT
• Additional Information: APPLICABLE STANDARD FEDERAL SPECIFICATION WC-586D
• Catalog Number: LL97
• Access Opening: LEFT SIDE
• Configuration: LL
• Cover Type: SAND CAST ZINC PLATED, ALUMINUM ACRYLIC COATED GRAY (IRON ALLOY), STAMPED ZINC PLATED, CLEAR CHROMATE COATED (STEEL), SCREW ON
• Hub Location: 90 DEG
• Number Of Hubs: 2
• Hub Size: 3-1/2 INCH
• Size: 12.85 INCH L X 7.03 INCH W X 4.9 INCH H
• Catalog Description: 3-1/2 INCH FORM 7, LL CONDUIT BODY, BODY MATERIAL GRAY IRON WITH ZINC PLATING AND BAKED ON EPOXY POWDER COAT WITH BLUEKOTE INTERNAL COATING FOR USE WITH RIGID/IMC CONDUIT
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Sand Cast Zinc Plated, Aluminum Acrylic Coated Gray Iron Alloy Body, Neoprene Gasket, Stainless Steel Screw Material; 12.85 Inch L X 7.03 Inch W X 4.9 Inch H Size; Rigid Conduit Used on; 3-1/2 Inch Hub Size; Threaded Installation; LL Configuration; 2 Hub(S); UL 514-A, UL 514-B, CSA 22.2 Approval; Sand Cast Zinc Plated, Aluminum Acrylic Coated Gray (Iron Alloy), Stamped Zinc Plated, Clear Chromate Coated (Steel), Screw on Cover Type; 90 Deg Hub Location; Form 7 Form Type; Left Side Access Opening; Applicable Standard Federal Specification WC-586D
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 786210933504
• SKU Name: t&b ll97
