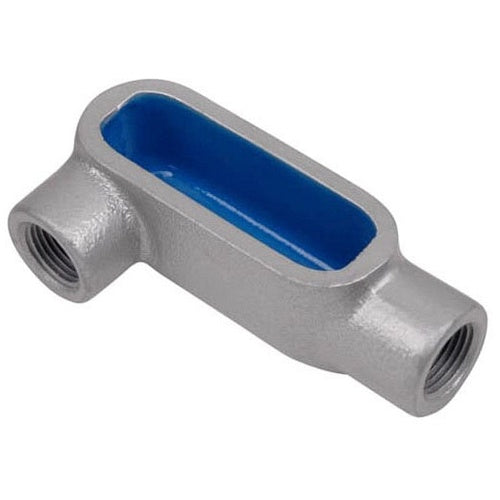

T&B LR27 3/4" Bluekote LR Conduit Body Form-7 Iron

Overview

High-performance electrical insulation for enhanced safety, Robust construction for maximum durability, Easy installation and maintenance for reduced operational costs

Product Specifications

• UPC: 78621092495
• Hub Size: 3/4 Inch
• Size: 5.25 Inch Length x 1.65 Inch Width x 1.6 Inch Height
• Installation: Threaded
• Material: PTFE Based BlueKote Coated Internal, Zinc Plated with Acrylic Epoxy Coated Class 30 Gray Iron Alloy
• Form Type: Form 7
• Approval: UL, CSA
• Used On: IMC/Rigid Conduit
• Catalog Number: LR27
• Brand Name: BlueKote[R]
• Model: LR
• Access Opening: 90 Degree Right Side
• Configuration: LR
• Cover Type: Zinc Plated Stamped Steel with Clear Chromate Coating
• Hub Location: 90 Degree
• Number Of Hubs: 2
• Catalog Description: 3/4 INCH FORM 7, LR CONDUIT BODY, BODY MATERIAL GRAY IRON WITH ZINC PLATING AND BAKED ON EPOXY POWDER COAT WITH BLUEKOTE INTERNAL COATING FOR USE WITH RIGID/IMC CONDUIT
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: PTFE Based Bluekote Coated Internal, Zinc Plated With Acrylic Epoxy Coated Class 30 Gray Iron Alloy Material; 5.25 Inch Length X 1.65 Inch Width X 1.6 Inch Height Size; Imc/Rigid Conduit Used on; 3/4 Inch Hub Size; Threaded Installation; LR Configuration; 2 Hub(S); UL, CSA Approval; Zinc Plated Stamped Steel With Clear Chromate Coating Cover Type; 90 Degree Hub Location; Form 7 Form Type; 90 Degree Right Side Access Opening; BLUEKOTE[R] Brand; LR Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 786210924953
• SKU Name: T&B LR27
