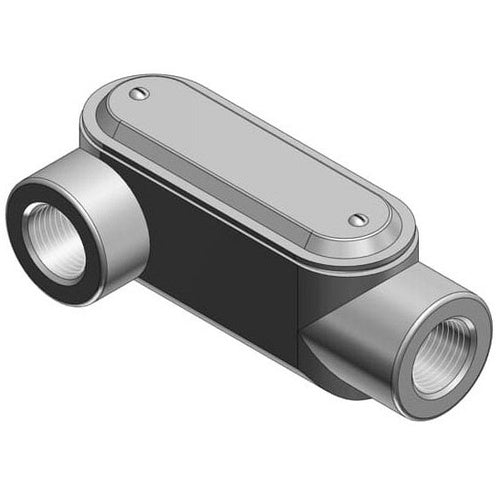

T&B LR37CG-TB 1" C-Body, Cover & Gasket, LR, Form-7

Overview

T&B LR37CG-TB 1" C-Body, Cover & Gasket, LR, Form-7

Product Specifications

• UPC: 78621091694
• Installation: Threaded
• Material: PTFE Based BlueKote Coated Internal, Class 30 Zinc Plated with Epoxy Powder Coated Gray Iron Alloy
• Form Type: Form 7
• Approval: UL, CSA
• Used On: IMC/Rigid Conduit
• Additional Information: Includes Cover, Neoprene Gasket, Stainless Steel Screw
• Catalog Number: LR37CG-TB
• Brand Name: BlueKote[R]
• Access Opening: 90 Degree Right Side
• Configuration: LR
• Cover Type: Zinc Plated Stamped Steel with Clear Chromate Coating
• Hub Location: 90 Degree
• Number Of Hubs: 2
• Hub Size: 1 Inch
• Catalog Description: 1 INCH FORM 7 (LR) PRE-ASSEMBLED CONDUIT BODY, COVER AND GASKET, BODY MATERIAL GRAY IRON/ZINC PLATING AND BAKED ON EPOXY POWDER COAT WITH BLUEKOTE INTERNAL COATING, COVER MATERIAL AND FINISH STAMPED STEEL/ZINC PLATING
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: PTFE Based Bluekote Coated Internal, Class 30 Zinc Plated With Epoxy Powder Coated Gray Iron Alloy Material; Imc/Rigid Conduit Used on; 1 Inch Hub Size; Threaded Installation; LR Configuration; 2 Hub(S); UL, CSA Approval; Zinc Plated Stamped Steel With Clear Chromate Coating Cover Type; 90 Degree Hub Location; Form 7 Form Type; 90 Degree Right Side Access Opening; BLUEKOTE[R] Brand; Includes Cover, Neoprene Gasket, Stainless Steel Screw
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 786210916941
• SKU Name: t&b lr37cgtb

Resources

• Manufacturer Spec Sheet
