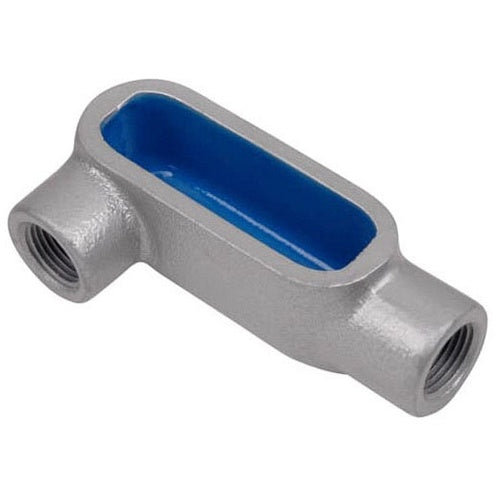

T&B LR87 3" Conduit Body, Gray Iron, LR Form-7

Overview

T&B LR87 3" Conduit Body, Gray Iron, LR Form-7

Product Specifications

• UPC: 78621093439
• Size: 10.5 Inch Length x 5.75 Inch Width
• Installation: Threaded
• Material: Triple Coated - Zinc Electroplated/Chromated/Epoxy Powder Coated Grayloy-Iron
• Form Type: Form 7
• Approval: UL 514A/B, CSA C22.2
• Used On: IMC/Rigid Conduit
• Additional Information: Enclosure Rating Class I Div 2; Application Pulling Fitting, Conduit System, Splicing, Connect and Change Direction of Conduit Run, Branch Run Connection, Conductor Maintenance, Hazardous Location; Applicable Standard NEMA FB-1
• Catalog Number: LR87
• Brand Name: FM7[TM]
• Access Opening: 90 Degree Right Side
• Configuration: LR
• Cover Type: Triple Coated - Zinc Electroplated/Chromated/Epoxy Powder Coated Grayloy-Iron
• Hub Location: 90 Degree
• Number Of Hubs: 2
• Hub Size: 3 Inch
• Catalog Description: 3 INCH FORM 7, LR CONDUIT BODY, BODY MATERIAL GRAY IRON WITH ZINC PLATING AND BAKED ON EPOXY POWDER COAT WITH BLUEKOTE INTERNAL COATING FOR USE WITH RIGID/IMC CONDUIT
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Triple Coated - Zinc Electroplated/Chromated/Epoxy Powder Coated Grayloy-Iron Material; 10.5 Inch Length X 5.75 Inch Width Size; Imc/Rigid Conduit Used on; 3 Inch Hub Size; Threaded Installation; LR Configuration; 2 Hub(S); UL 514A/B, CSA C22.2 Approval; Triple Coated - Zinc Electroplated/Chromated/Epoxy Powder Coated Grayloy-Iron Cover Type; 90 Degree Hub Location; Form 7 Form Type; 90 Degree Right Side Access Opening; Enclosure Rating Class I Div 2; Application Pulling Fitting, Conduit System, Splicing, Connect and Change Direction of Conduit Run, Branch Run Connection, Conductor Maintenance, Hazardous Location; Applicable Standard NEMA FB-1
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 786210934396
• SKU Name: t&b lr87
