Overview

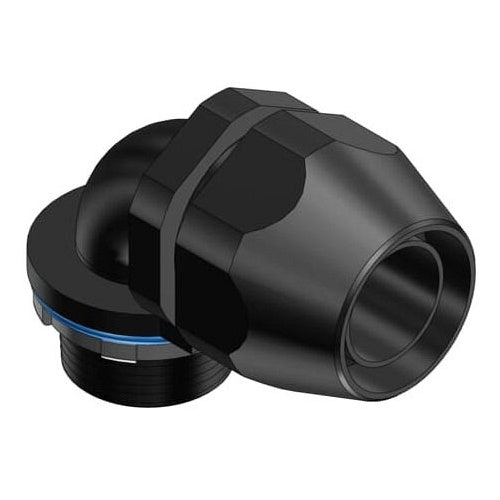

T&B LT9100P 1" Liquidtight Connector

Product Specifications

• UPC: 78621045074
• Additional Information: Thread Size 1 Inch-11-1/2 TPI; Throat Diameter 0.94 Inch
• Catalog Number: LT9100P
• Brand Name: T&B
• Type: 90 Degree
• Trade Size: 1 Inch
• Material: Thermoplastic (Body), Steel (Locknut)
• Standard Package: 25 per Outer Pack
• Approval: UL 514B, CSA C22.2
• Used On: Extra Flexible Tubing/Liquidtight Non-Metallic Type B Conduit
• Catalog Description: 1 INCH 90 DEGREE NON-METALLIC LIQUIDTIGHT BULLET CONNECTOR
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: 90 Degree, Threaded Type; Black Thermoplastic (Body), Blue Nitrile (O-ring), Zinc Electroplated Steel (Locknut) Material; Flexible Non-Metallic Conduit Used on; UL 514B, CSA C22.2 Approval; 25 Standard Package; 1 Inch Trade Size; Bullet [R] Brand; Thread Size 1 Inch-11-1/2 TPI; Throat Diameter 0.94 Inch; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Group E F G, Class III, NEMA 4/4X; Application Hazardous Location; LT Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 786210450742
• SKU Name: t&b lt9100p

Resources

• Manufacturer Spec Sheet
