Overview

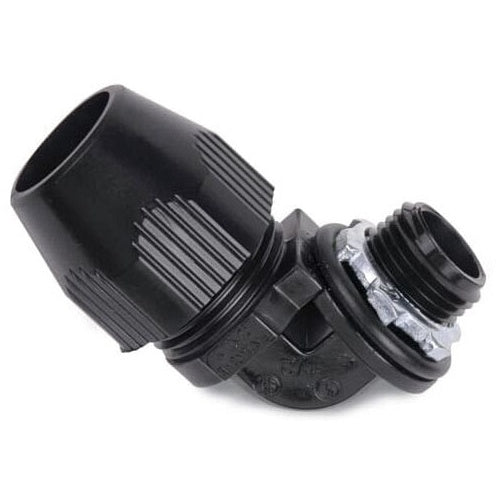

T&B LT950P 90Deg Plastic Connector

Product Specifications

• UPC: 78621045072
• Additional Information: Thread Size 1/2 Inch-14 TPI; Throat Diameter 0.55 Inch; Enclosure Type Class I Div 2, Class II Div 1 and 2, Group E F G, Class III, NEMA 4/4X; Application Hazardous Location
• Catalog Number: LT950P
• Model: LT
• Type: 90 Degree
• Trade Size: 1/2 Inch
• Material: Black Non-Metallic Thermoplastic (Body), Blue Nitrile (O-Ring), Zinc Electroplated Steel (Locknut)
• Standard Package: 50
• Approval: UL, CSA
• Used On: Liquid Tight Flexible Non-Metallic Conduit
• Catalog Description: 1/2 INCH 90 DEGREE NON-METALLIC LIQUIDTIGHT BULLET CONNECTOR
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: 90 Degree, Threaded Type; Black Thermoplastic (Body), Blue Nitrile (O-ring), Zinc Electroplated Steel (Locknut) Material; Flexible Non-Metallic Conduit Used on; UL 514B, CSA C22.2 Approval; 50 Standard Package; 1/2 Inch Trade Size; Bullet [R] Brand; Thread Size 1/2 Inch-14 TPI; Throat Diameter 0.55 Inch; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Group E F G, Class III, NEMA 4/4X; Application Hazardous Location; LT Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 786210450728
• SKU Name: t&b lt950p

Resources

• Manufacturer Spec Sheet
