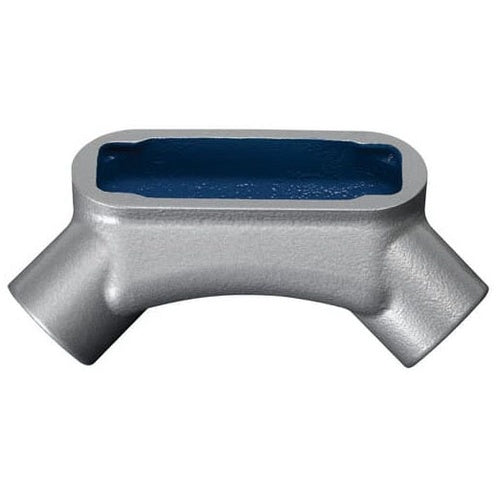

T&B LU47 1-1/4" Universal Elbow

Overview

T&B LU47 1-1/4" Universal Elbow

Product Specifications

• UPC: 78620991241
• Size: 8.4 Inch L x 2.47 Inch W x 4.21 Inch H
• Material: Zinc Plated with Acrylic Epoxy Coated Class 30 Gray Iron Alloy Body, Stainless Steel Cover Screw, Neoprene Gasket
• Form Type: Form 7
• Approval: UL 514A, UL 514B, CSA 22.2
• Used On: Rigid/IMC Conduit
• Additional Information: Capacity 23 Cu Inch
• Catalog Number: LU47
• Brand Name: BlueKote[R]
• Access Opening: Back
• Configuration: LU
• Cover Type: Zinc Plated with Clear Chromate Coated Stamped Steel
• Hub Location: 45 Deg
• Number Of Hubs: 2
• Hub Size: 1-1/4 Inch
• Catalog Description: 1-1/4 INCH FORM 7 (LU) CONDUIT ELBOW FOR USE WITH RIGID/IMC CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Zinc Plated With Acrylic Epoxy Coated Class 30 Gray Iron Alloy Body, Stainless Steel Cover Screw, Neoprene Gasket Material; 8.4 Inch L X 2.47 Inch W X 4.21 Inch H Size; Rigid/Imc Conduit Used on; 1-1/4 Inch Hub Size; Lu Configuration; 2 Hub(S); UL 514A, UL 514B, CSA 22.2 Approval; Zinc Plated With Clear Chromate Coated Stamped Steel Cover Type; 45 Deg Hub Location; Form 7 Form Type; Back Access Opening; BLUEKOTE[R] Brand; Capacity 23 Cu Inch
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Products
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 786209912411
• SKU Name: t&b lu47
