Overview

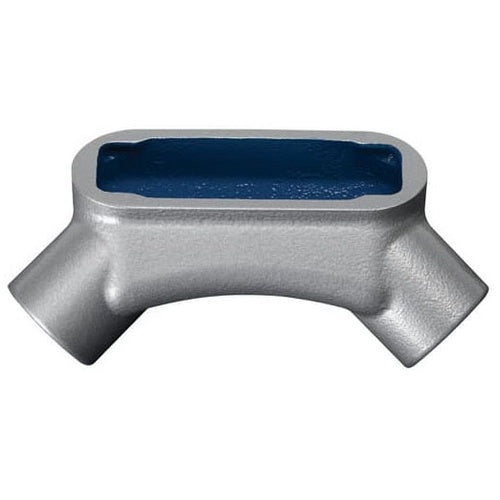

T&B LU57 1-1/2" Universal Elbow

Product Specifications

• UPC: 78620991242
• Installation: Threaded
• Material: PTFE Based BlueKote Coated Internal, Zinc Plated with Acrylic Epoxy Coated Class 30 Gray Iron Alloy
• Form Type: Form 7
• Approval: UL, CSA
• Used On: IMC/Rigid Conduit
• Catalog Number: LU57
• Brand Name: BlueKote[R], LU[R]
• Configuration: LU
• Cover Type: Zinc Plated Stamped Steel with Clear Chromate Coating
• Hub Location: 45 Degree
• Number Of Hubs: 2
• Hub Size: 1-1/2 Inch
• Size: 8.95 Inch Length x 2.72 Inch Width x 4.44 Inch Height
• Catalog Description: 1-1/2 INCH FORM 7 (LU) CONDUIT ELBOW FOR USE WITH RIGID/IMC CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: PTFE Based Bluekote Coated Internal, Zinc Plated With Acrylic Epoxy Coated Class 30 Gray Iron Alloy Material; 8.95 Inch Length X 2.72 Inch Width X 4.44 Inch Height Size; Imc/Rigid Conduit Used on; 1-1/2 Inch Hub Size; Threaded Installation; Lu Configuration; 2 Hub(S); UL, CSA Approval; Zinc Plated Stamped Steel With Clear Chromate Coating Cover Type; 45 Degree Hub Location; Form 7 Form Type; BLUEKOTE[R] Brand
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Products
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 786209912428
• SKU Name: t&b lu57
