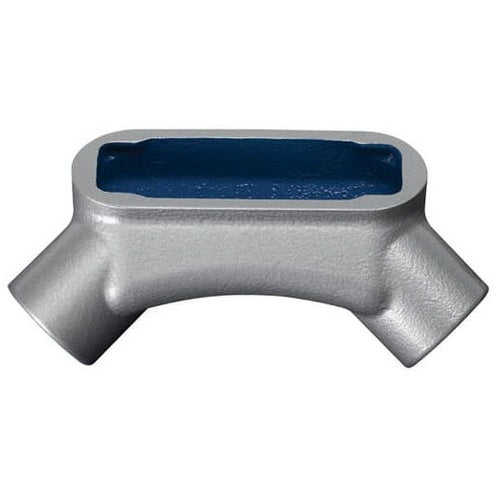

T&B LU67 2" Conduit Body, Gray Iron, LU Form-7

Overview

T&B LU67 2" Conduit Body, Gray Iron, LU Form-7

Product Specifications

• UPC: 78620991243
• Size: 10.61 INCH L X 3.43 INCH W X 5.43 INCH H
• Material: ZINC PLATED WITH ACRYLIC EPOXY COATED CLASS 30 GRAY IRON ALLOY BODY, STAINLESS STEEL COVER SCREW, NEOPRENE GASKET
• Form Type: FORM 7
• Approval: UL 514A, UL 514B, CSA 22.2
• Used On: RIGID/IMC CONDUIT
• Additional Information: CAPACITY 56 CU INCH
• Catalog Number: LU67
• Brand Name: BLUEKOTE
• Access Opening: BACK
• Configuration: LU
• Cover Type: ZINC PLATED WITH CLEAR CHROMATE COATED STAMPED STEEL
• Hub Location: 45 DEG
• Number Of Hubs: 2
• Hub Size: 2 INCH
• Catalog Description: 2 INCH FORM 7 (LU) CONDUIT ELBOW FOR USE WITH RIGID/IMC CONDUIT
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Zinc Plated With Acrylic Epoxy Coated Class 30 Gray Iron Alloy Body, Stainless Steel Cover Screw, Neoprene Gasket Material; 10.61 Inch L X 3.43 Inch W X 5.43 Inch H Size; Rigid/Imc Conduit Used on; 2 Inch Hub Size; Lu Configuration; 2 Hub(S); UL 514A, UL 514B, CSA 22.2 Approval; Zinc Plated With Clear Chromate Coated Stamped Steel Cover Type; 45 Deg Hub Location; Form 7 Form Type; Back Access Opening; BLUEKOTE[R] Brand; Capacity 56 Cu Inch
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Products
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 786209912435
• SKU Name: t&b lu67

Resources

• Product Spec Sheet
