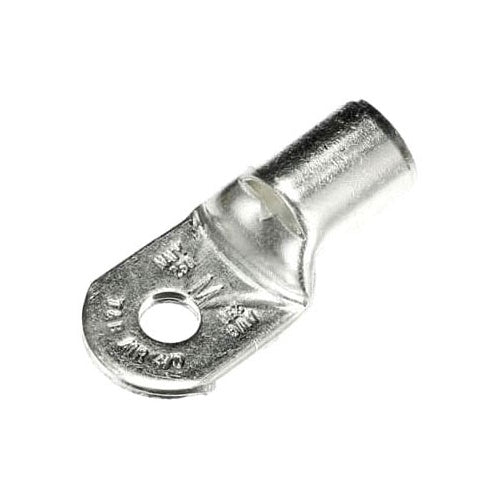

T&B M250-38 Non-Insulated - Tub Ring Terminal 250Mcm,

Overview

T&B M250-38 Non-Insulated - Tub Ring Terminal 250Mcm,

Product Specifications

• UPC: 78621080372
• Standard Package: 5
• Approval: UL 486-A, CSA 22.2
• Additional Information: Dimension 2.4 Inch L x 1.12 Inch W x 0.07 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V
• Catalog Number: M250-38
• Model: M
• Type: Standard
• Maximum Conductor Size: 250 MCM
• Color: Metallic
• Insulation Type: Non-Insulated
• Stud Size: 3/8 Inch
• Temperature Rating: 150 Deg C
• Catalog Description: NON-INSULATED TUBULAR RING TERMINAL, LENGTH 2.40 INCHES, WIDTH 1.12 INCHES, BOLT HOLE 3/8 INCH, WIRE RANGE 4/0AN-250KCMIL, COPPER, TIN PLATED, 5 PACK
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Standard Type; Metallic Color; 250 MCM Max. Conductor Size; UL 486-A, CSA 22.2 Approval; 150 Deg C Temperature Rating; 5 Standard Package; 3/8 Inch Stud Size; Non-Insulated Insulation Type; Dimension 2.4 Inch L X 1.12 Inch W X 0.07 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V; M Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210803722
• SKU Name: t&b m25038
