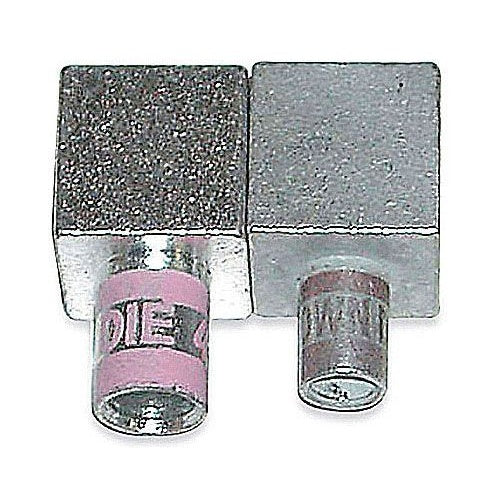

T&B MD10M-3 Motor Pigtail Disconnect Male 1Ld 1/0 Sz3 Pink

Overview

T&B MD10M-3 Motor Pigtail Disconnect Male 1Ld 1/0 Sz3 Pink

Product Specifications

• UPC: 78621084057
• Approval: UL, CSA
• Additional Information: Overall Dimension 1.56 Inch Length x 1.75 Inch Width; Color Pink
• Catalog Number: MD10M-3
• Brand Name: Blackburn/Color-Keyed
• Type: Male
• Voltage Rating: 600 Volt
• Conductor Material: Copper
• Conductor Size: 1/0 AWG
• Material: Tin Plated Copper
• Size: #3
• Catalog Description: KUBE MALE (ONE LOAD) COPPER MOTOR PIGTAIL DISCONNECT, WIRE SIZE 1/0 AWG, BODY SIZE 3, DIE COLOR CODE PINK
• Category: Large Terminals & Connectors
• Full Technical Description: Male Type; Tin Plated Copper Material; #3 Size; Copper Conductor Material; UL, CSA Approval; 600 Volt Voltage Rating; 1/0 AWG Conductor Size; Overall Dimension 1.56 Inch Length X 1.75 Inch Width; Color Pink
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Pigtail Motor Terminal
• Unspsc: 39121447
• UPC 12 Digit: 786210840574
• SKU Name: t&b md10m3

Resources

• Manufacturer Spec Sheet
